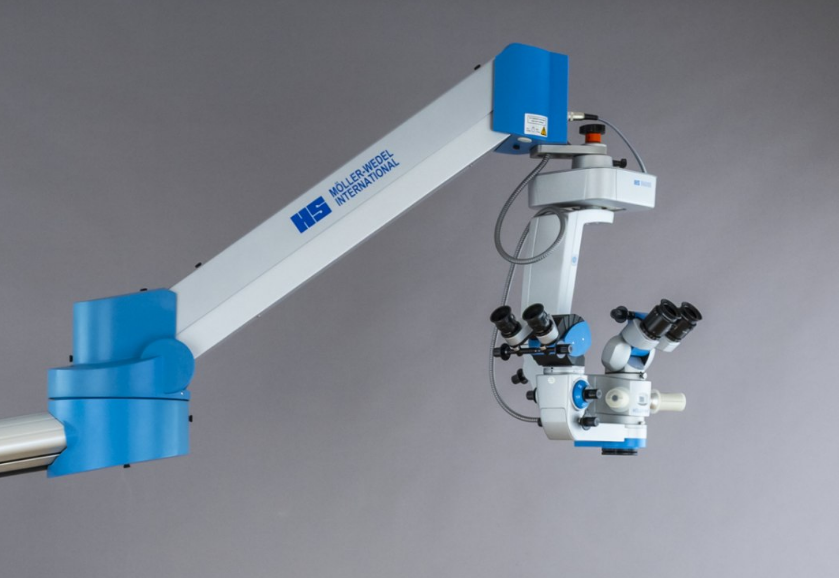

Möller-Wedel Hi-R 900 FS 3-31 Ophthalmic Operating Microscope

Used, reconditioned, electrically controlled Möller-Wedel Hi-R 900
ophthalmic operating microscope on a FS 3-31 mobile stand.
The microscope has a wide range of applications in ophthalmology.
The microscope is fully functional and in very good technical and visual condition.

EQUIPMENT
Hi-R 900 optics
Assist preview
Lens f=175mm
Foot controller
XY module
Sterilization handles with electromagnetic brake release function
Control unit with LCD display
FS 3-31 mobile tripod

Optional equipment:
Vision track

TECHNICAL DATA
Electrically controlled microscope functions:
Smooth adjustment of the arms and microscope head using electromagnetic brakes
Smooth adjustment of magnification (zoom) and focus (focus) using the foot controller
Smooth regulation of light intensity
Head movement along the XY axis

Parameters:
Total microscope magnifications: from 4.4x to 26.6x
Glasses magnification:
doctor: 10x
assists: 12.5x
Doctor's view with tilt adjustment from 0 to 180 degrees
Assist preview straight 0 to 90 degrees
Lens focal length f=175 mm
XY module zeroing function (return to initial position)

Filters:
UV
Soft light
Daylight
Blue
Slit lighting
Adjusting the light intensity
Halogen lighting guided by optical fiber
Main light source: Halogen 150W
Power supply: 230V, 50-60Hz

Dimensions:
Microscope height:
min: 187 cm
max: 232 cm

Lens distance from floor:
min: 87 cm
max: 158 cm

Lens distance from column:
max: 150 cm
Base: 80cm x 80cm
Weight: about 200 kg
