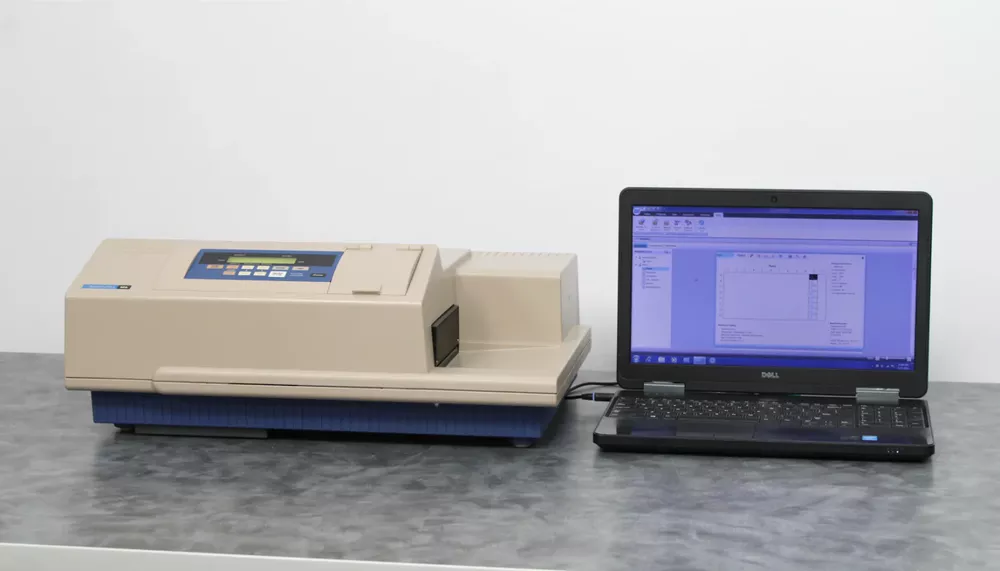

Molecular Devices SpectraMax M5 Multi-Mode Microplate Reader and Laptop

Read modes Absorbance
Fluorescence (top/bottom read)
Luminescence (top/bottom read)
Time-Resolved Fluorescence (top/bottom read)
Fluorescence Polarization (top read)
HTRF (top/bottom read)
Wavelength ranges Abs: 200 - 1000 nm
FL: 250 - 850 nm
Lumi: 250 - 850 nm
TRF: 250 - 850 nm
FP: 300 - 750 nm
Wavelength selection Monochromator tunable in 1-nm increments
Absorbance photometric accuracy/linearity < ±1.0% and ±0.006 OD (0.0-2.0 OD)
Absorbance photometric precision/repeatability < ±1.0% and ±0.003 OD (0.0-2.0 OD)
Sensitivity top read optimized FL: 1 fmol/well in 200 μL FITC 96 well (< 5 pM), 2 fmol/well in 100 μL FITC 384 well (< 20 pM)
Lumi: < 2 fg/well for firefly luciferase in 96 and 384 well
TRF: 100 fM europium in 96 and 384 well
FP: < 5 mP standard deviation at 1 nM fluorescein in 96 and 384 well
Light source(s) Xenon flashlamp
Detector(s) Silicon photodiode
Photomultiplier tube
Read types (endpoint, kinetic, etc) Endpoint
Kinetic
Spectrum scan
Well scan
Read times Abs: 17 seconds
FL: 15 seconds
Lumi: 17 seconds
TRF: 15 seconds
FP: 44 seconds
Plate shaking Linear
Cuvette port Yes
Robotics / automation Yes
Plate type(s) 6 - 384 well plates
Temperature control Yes, Ambient +2°C to 60°C
Power rating 100-240V~, 50-60Hz, 3.5A
Dimensions (W x D x H) 22.8 x 15 x 8.6 in (58 x 38 x 22 cm)
Weight 35 lb (15.9 kg)
