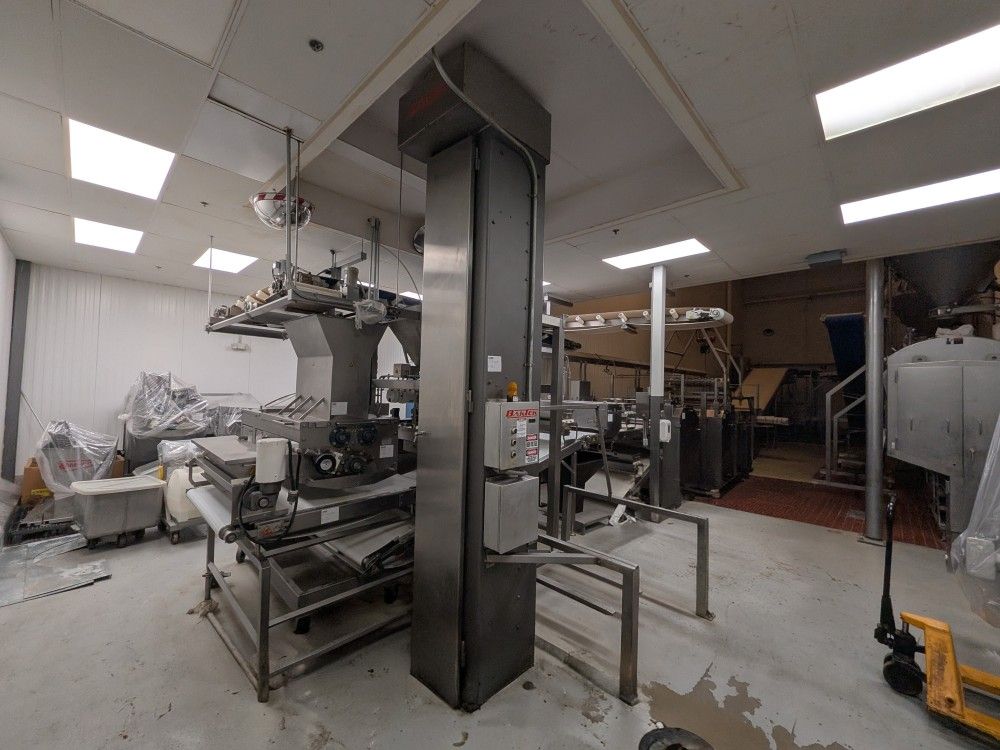

Moline Sheeting Line

Baktek Tote Lift
108 in. tall dump height
Overall dimensions: 13 ft. tall x 6 ft. wide x 5 ft. long
Includes (2) Totes

Moline Rotary Tri-blade Dough Chunker
Model: SWC10-32
Hopper - 60 in. wide x 523 in. long x 32 in. deep
108 in. infeed/ 76 in. tall discharge

Moline 2-roll Extruder
Model: EXT10-36
36 in. wide corrugated rolls

Moline Conveyor
48 in. wide belt
Plastic interlock flat top belt

Moline Flour Duster
Model: FDAF-48R
Mounted to conveyor frame

Moline Multi-Cross Roller Station
Model: MCR-48R

Moline Flour Duster
Model: FDAF-48R
Mounted to conveyor frame

Moline Incline conveyor section w/ Flour Duster (through Satellite Roller Station)
48 in. wide belt
White Vinyl Belt
Model: FDAF-48R
Mounted to conveyor

Moline Satellite Dual Roller Station
Model:SD10-48R
48 in. wide rollers

Christy Portable Flour Duster
Model: Siv-O-Duster-60"
C-frame design, on casters

Moline Flour Duster
Model: FDAF-48R
Mounted to conveyor frame

Moline 2-Roll Sheeting Station
Model: 10-48VR
48 in. wide smooth rollers

Moline Docking Station
Model: PCS-48L

Moline Rotary Die Cutting Station
Model: PCS-48L
Round Dies
4 in. diameter
3.5 in. diameter
3 in. diameter
Pneumatic rotary drum to assist product removal from die

Over the Conveyor Hoist for Die and Docking Roller removal.

Moline Trim Removal Conveyor and Scrap Return Conveyors
Model:TPU-48R
(4) Scrap Return Conveyors: (1) on casters, (3) suspended from the ceiling
17 in. wide "U" trough vinyl belt

Moline Scrap Return 3-Roll Extruder
Model: TRE-36R
36 in. wide Rollers
Corrugated Top Rollers:
(1) Fine Corrugated
(1) Rough Corrugated
Smooth Bottom Roller

Moline Scrap infeed conveyor back to sheeting line
Model: CP-48-7FR
48 in. wide belt
Plastic interlock flat top belt
Moline Flour Duster
Model: FDAF-48R
Mounted to conveyor frame.
SS Control Panel
Allen Bradley PLC and Vfds

Additional Specs:
Power Requirements: 480V, 3 Phase, 60Hz
Previously doing flat bread
OVERALL FOOTPRINT: 46 ft. long x 108 in. wide x 134 in. tall
