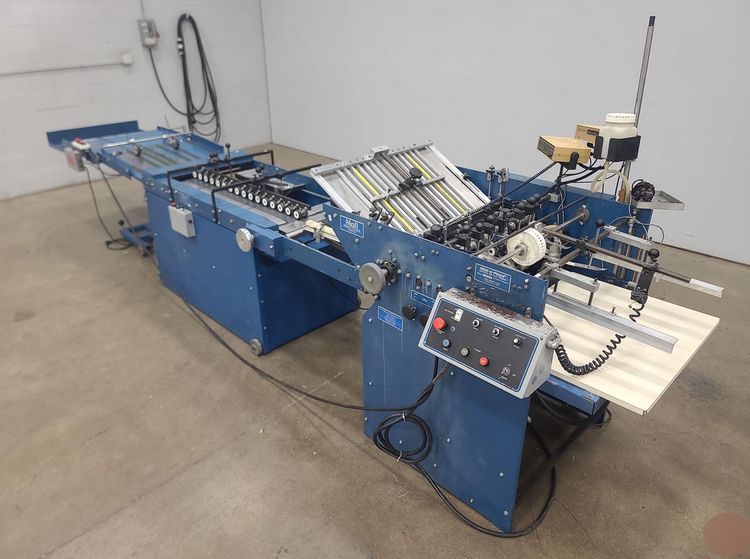

Moll Pocket Folder Gluer System w/ Suction Air Pile Feeder & Delivery Conveyor

Features:
Suction air pile feeder for consistent sheet separation and feeding
Heavy-duty unitized steel frame construction
Adjustable pocket fold plates and plow folding system
Final Fold unit for completing multi-panel folder production
Hot melt and/or cold glue compatibility
Dual pump air system for stable operation
Variable speed controls for feeder, folding, and delivery sections
Dial-A-Stack delivery for efficient stacking and throughput
Designed for quick setup and changeovers

Typical Applications :
Presentation folders
Direct mail pieces and multi-panel mailers
Envelopes and sleeves
Key card holders and small packaging
Commercial print finishing and bindery operations

Technical Specifications :
Maximum sheet size: approx. 30″ x 30″
Minimum sheet size: approx. 5.5″ x 5.5″
Stock range: 70 lb cover up to 28 pt board (approx. 140–500 gsm)
Maximum speed: up to 425 ft/min
Feeding system: suction air pile feeder (Dial-A-Feed)
Glue system: hot melt and/or cold glue capable
Power requirements: approx. 220V, 3-phase
Compressed air requirement: approx. 90 PSI
