2009 Möller RW 800 Roll winding and packaging installation

Main data:
Max. Material width: 1000mm
Min. Material width: 500mm
Max weight paper/cardboard mother roll: 1000kg
Outside paper/cardboard mother roll diameter: 1200mm
Inside paper/cardboard mother roll diameter: 70/100mm
Cardboard sleeves outside diameter: 35-50mm
Cardboard sleeves length: 500 and 700mm
Packaging foil type: Polyolefine
Foil strength: 13-25 um
Product diameter / length: 400-765 mm

Total Dimensions (LxWxH): 9000x1750x2100mm

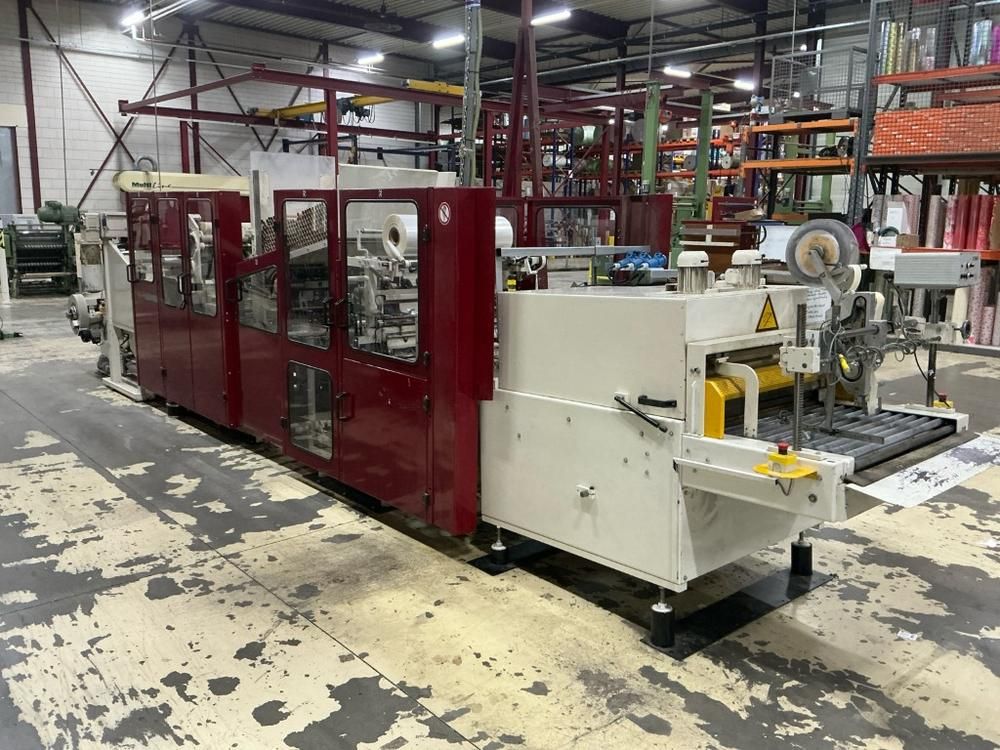

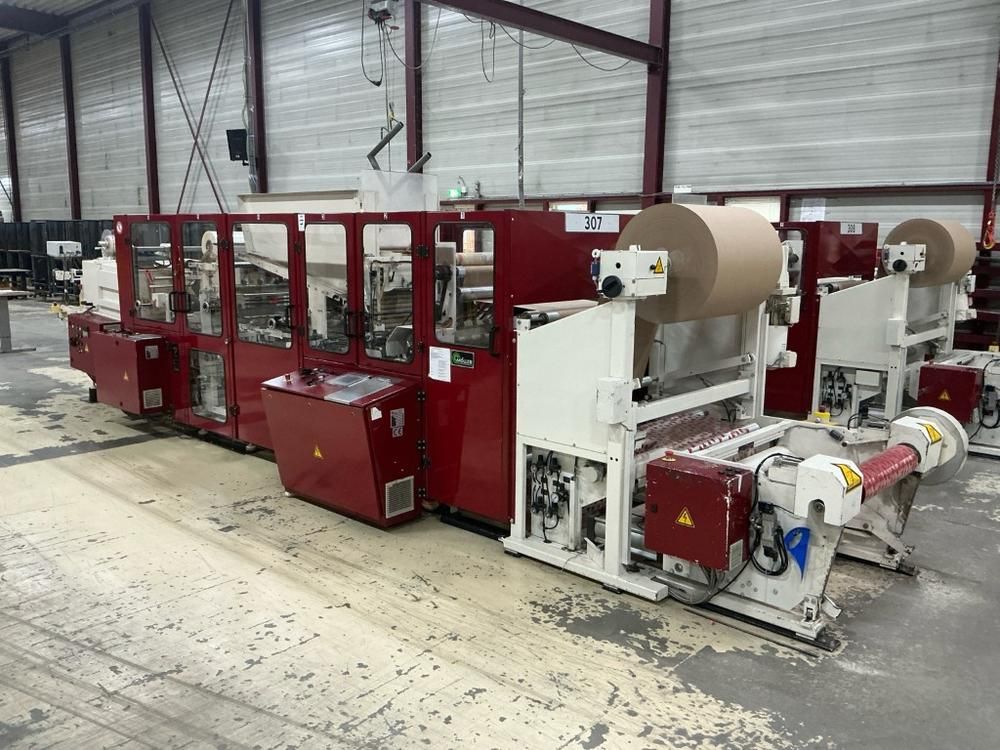

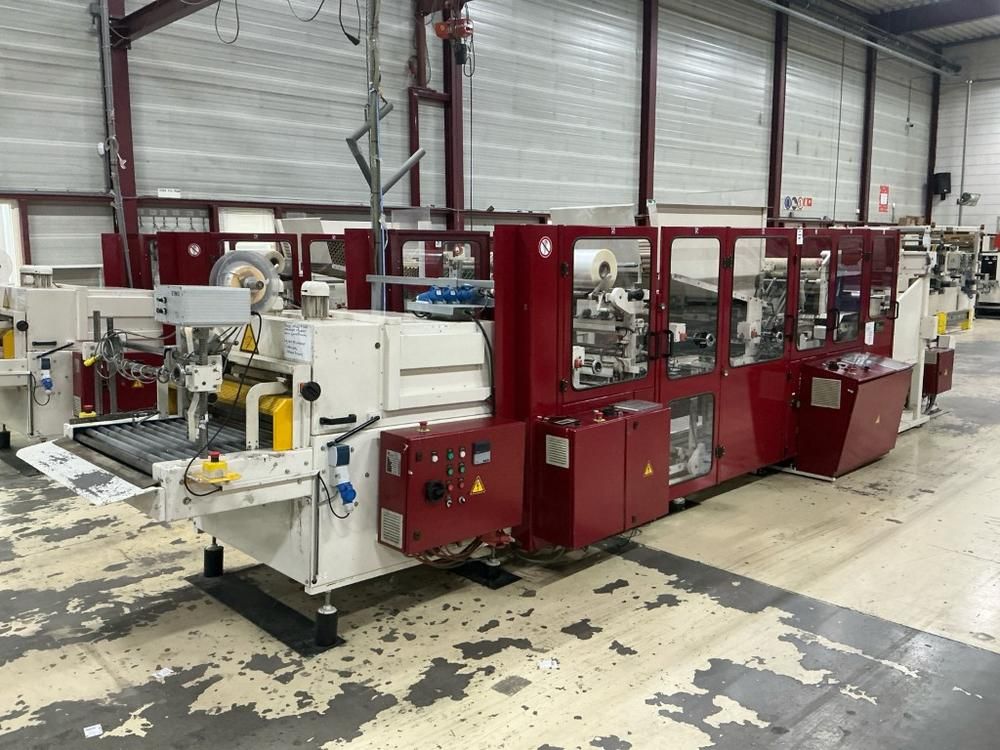

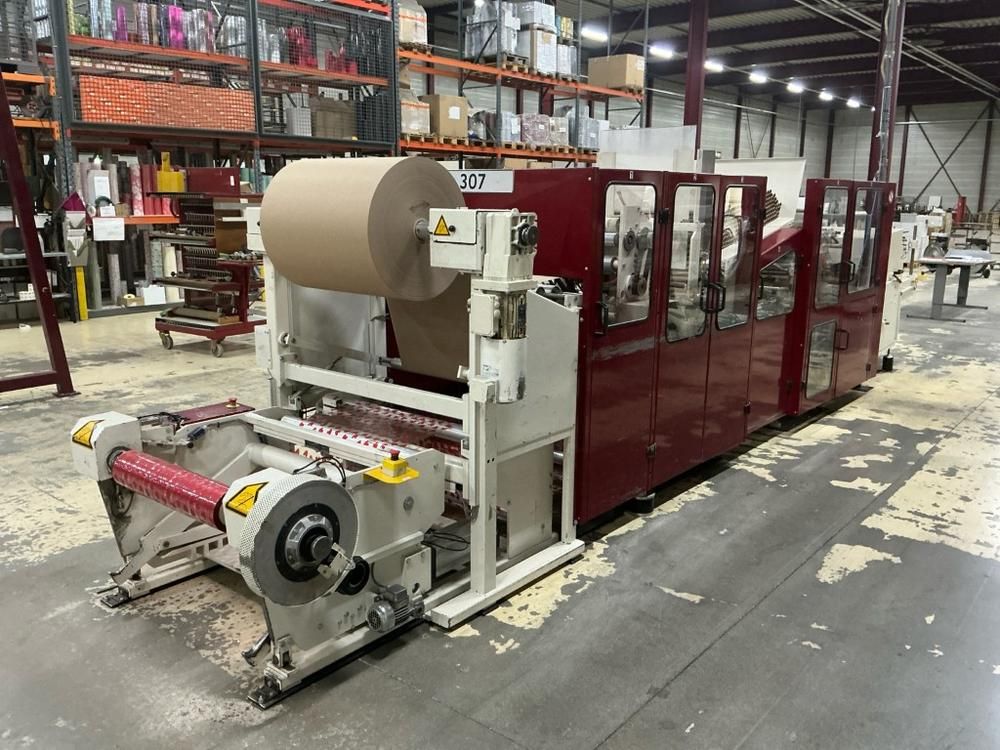

Line layout:
1. Roll wrapper RW 800 sn: 307.05.09
2. Roll packer RP 800S
3. Shrink tunnel SST 800
4. Label machine ETMO 120

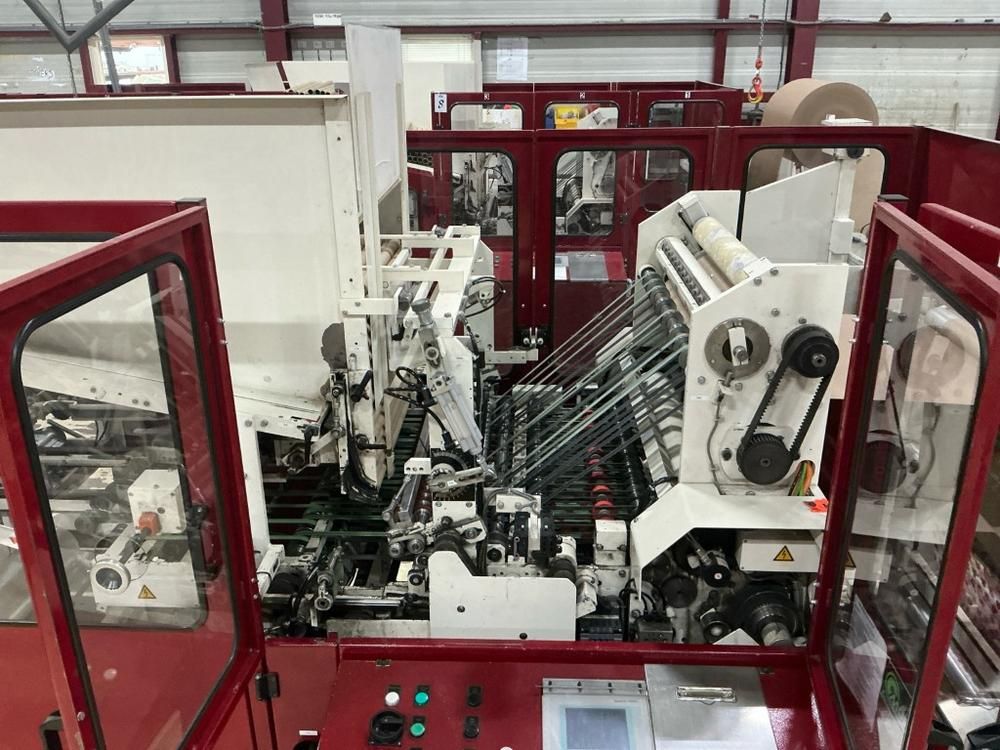

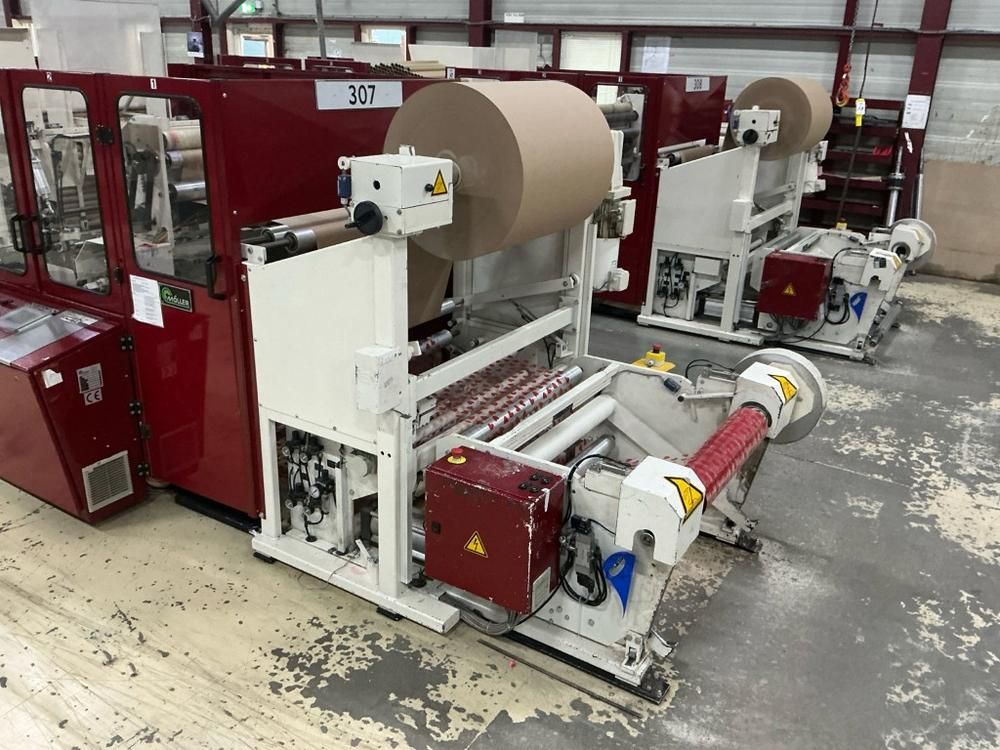

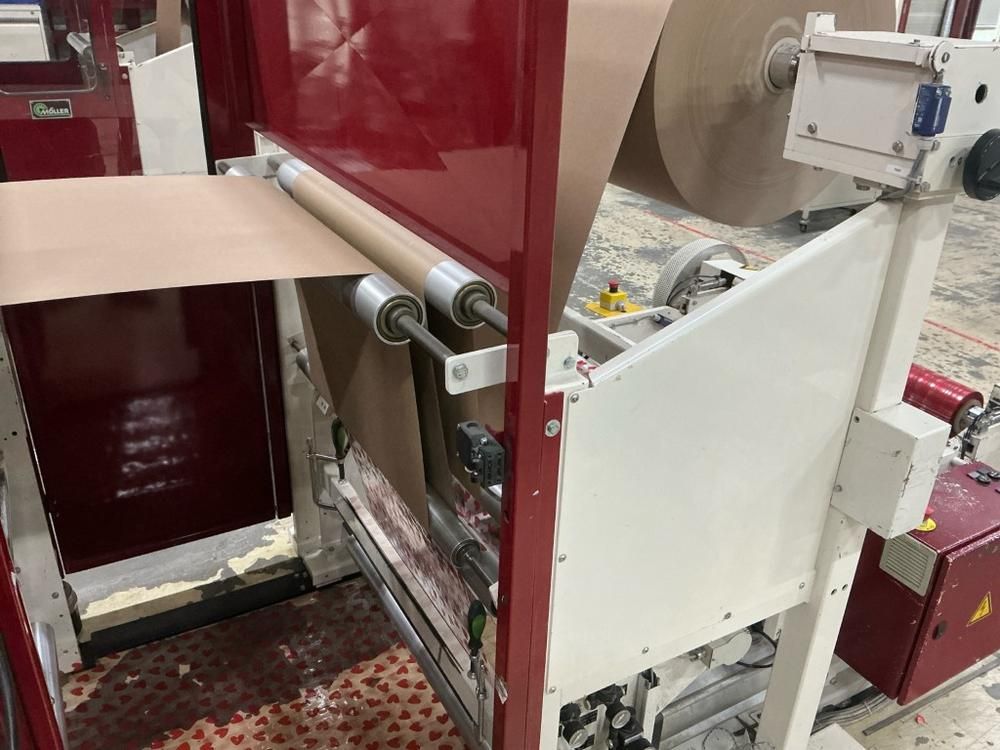

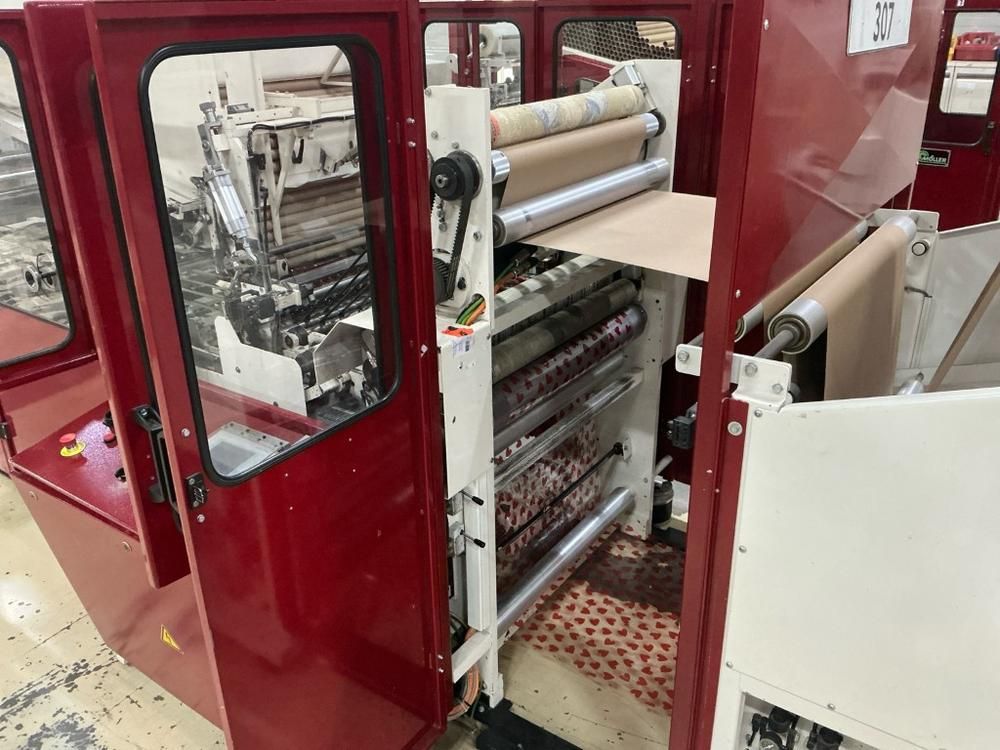

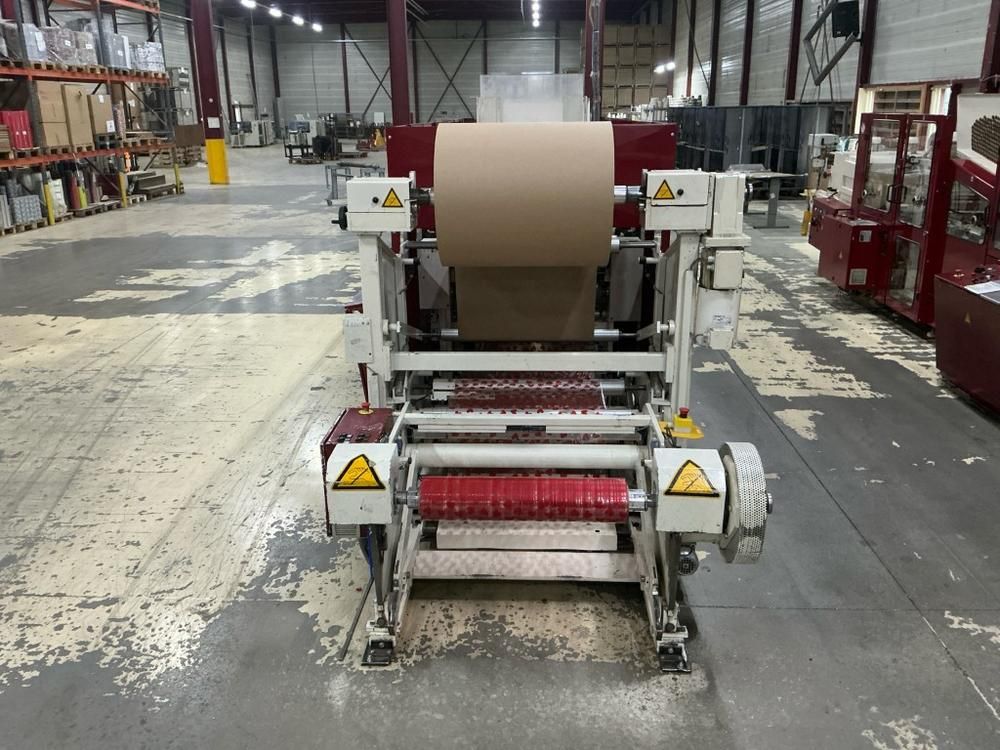

1. Roll wrapper
Brand: Möller
Type: RW 800
Year of construction: 2009
Serial number: 307.05.09
Supply voltage: 400v 3ph N SL 50hz
Operating pressure: 6 bar

2. Roll packer
Brand Möller
Type: RP 800S
Year of construction: 2009
Serial number: 260.05.09
Supply voltage: 400v 3ph N SL 50hz
Operating pressure: 6 bar

3. Shrink tunnel
Brand: Möller
Type: SST 800
Year of construction: 2009
Serial number: 240.05.09
Supply voltage: 400v 3ph N SL 50hz
Operating pressure: 6 bar

4. Label machine
Brand: ETMO
Type: 120

For spare parts please look at lot 143,145,235,236
