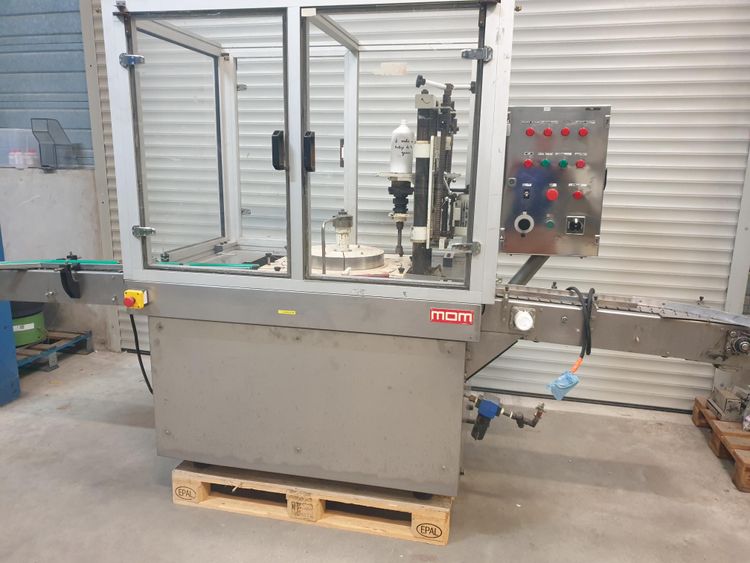

MOM 485 Screw Capper

Weight : 350 kg
Dimensions : (L x W x H) 3.30 x 1.05 x 1.86 M
Automatic rotary screwing machine for bottles or pill boxes.

Equipped with:
Stainless steel palletized bottle/pill box feed conveyor, 85 mm wide and 1800 mm long.
18-cell tray for transferring bottles/pill boxes to the screwing station.
Automatic feeding of caps/caps via a 600 mm diameter stainless steel vibrating bowl upon request. Positive gripping station for caps/caps and placement on bottles/pill boxes via a rotating head with lifting and lowering on request.
Screwing station with a disengageable head with torque adjustment.
General drive via a motor-variable speed control with variable speed on the control cabinet via a potentiometer.
Protective guards with safety devices.
Stainless steel frame Current equipment:
Bottle diameter: 32 mm
Cap diameter: 28 mm - height: 20 mm
The machine can be adapted to the desired size depending on its capabilities.

Maximum capacity:
Bottle/pill dispenser diameter: 100 mm - height: 200 mm

Maximum production:
approximately 40 bottles/pill dispensers/minute

Total electrical power: 2 kW
Maximum compressed air pressure: 6 bar
