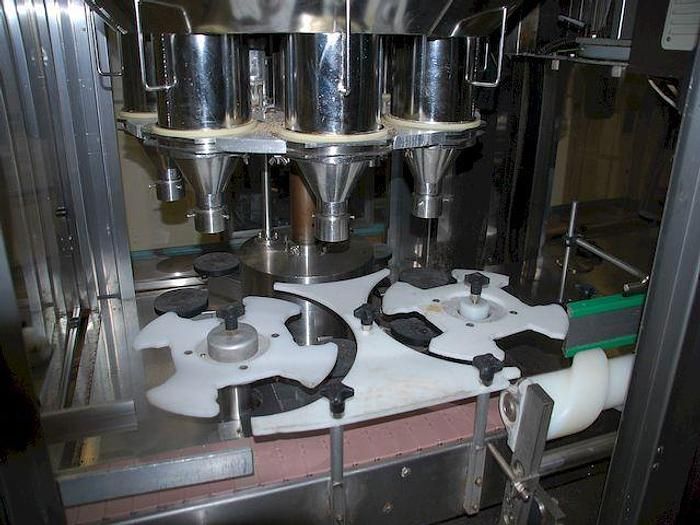

MOM Powder Dosing/Weighing Machine

AUTOMATIC WEIGHER FOR BOTTLES OR PLASTIC OR GLASS BOTTLES, FOR POWDER OR PELLETS. OPERATING DIRECTION: RIGHT TO LEFT
EQUIPPED:
INLET CONVEYOR FOR BOTTLES/JARS WITH PLASTIC PALLET, WIDTH 115 MM
- LENGTH 2500 MM
BOTTLE/JAR SPACER
STAR INLET FOR 4-CELL BOTTLES/JARS
1 CONICAL HOPPER FOR GENERAL SUPPLY. 80-LITER CAPACITY WITH AUGER
100 MM DIAMETER TO FEED THE HOPPER OF THE 8 DISPENSERS
8 SCREW DISPENSERS WITHOUT 50 MM DIAMETER AND MIXER
8 140 MM DIAMETER SUPPORTS FOR CANS WITH WEIGHTS UNDER THE DISPENSERS
STAR OUTLET WITH 4 BOTTLES/JARS
GENERAL TRAINING ON MOTOVARIATORS
POWER CABINET WITH "SIEMENS SIMATIC S7-300" PLC
TOUCHSCREEN
SAFETY PROTECTIVE GUARDS
STAINLESS STEEL FRAME
CURRENT TOOLS:
RECTANGULAR CAN LENGTH 140 MM - WIDTH 110 MM - HEIGHT 150 MM
DOSE 200 GR
CAPACITY:
MAXIMUM BOTTLE/JAR DIMENSIONS:
BOTTLES/ROUND BOTTLES DIAMETER 130 MM - HEIGHT 250 MM
HEIGHT 250 M
DOSES 100 TO 1400 GR WITH "E" 2 GR
NOMINAL DISPERSION 20 GR
MAXIMUM YIELD:
APPROXIMATELY 2400 BOTTLES/JARS PER HOUR FOR 200 GR OF POWDER
