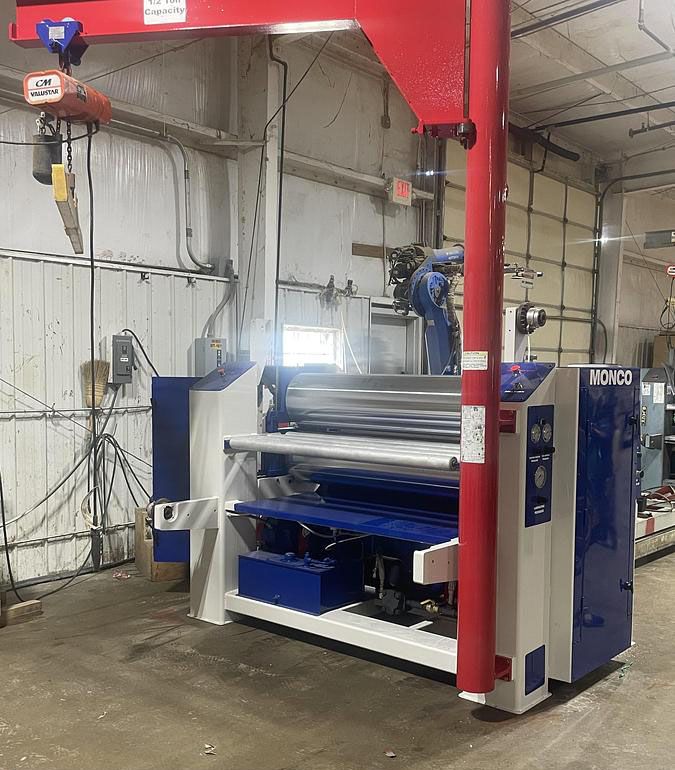

Monco TB60

60" inch Hot Roll Laminating Line
65" Cap., Top & Bottom Laminator with oil heated chrome plated rollers
14" roller diameter
25 - 106 FPM
5 HP feed motor
48 kW oil heating system, 400° F max.
heating including over-temperature cutoff safety device.
1 HP Oil circulation pump & a 1.5 HP hydraulic system for up to 900 PSI line pressure
3" dia. x 4" stroke cylinders control roll pressure.
62" width capacity.
Solid-State temperature, high limit & cool down controls
Manual emergency stop system on all (4) columns to stop the drive & raise the rolls.
