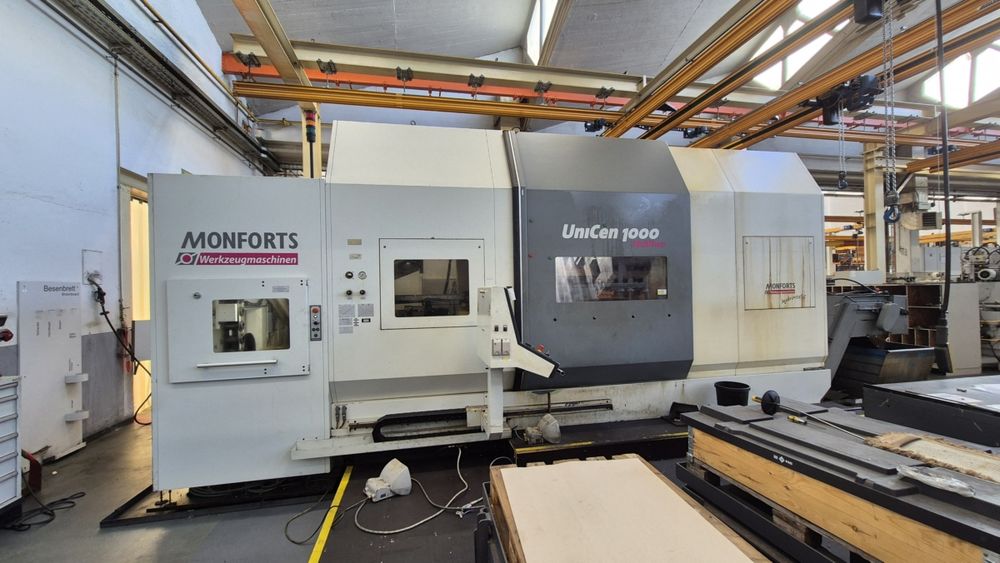

Monforts Siemens 840 D CNC 10000 rpm UniCen 1000 MultiTurn 5 Axis

X axis: Y axis present
Y axis: Yes
Z axis: Hydrostatic longitudinal guide
B axis: Swiveling milling head, interpolating, HSK-A 63
C axis: Yes

Control: Siemens 840 D CNC
Turret: 8-station, for driven tools
Tool changer: 60 stations
Tailstock: NC-controlled, quill diameter 150 mm, max stroke 180 mm
Coolant system with paper belt filter
Chip conveyor
Extraction system

Turning diameter: 1000 mm
Turning length: 1500 mm
Swing over bed: 1000 mm
Swing diameter over slide rest: 800 mm
Max workpiece weight between centers: 2000 kg

Main spindle speed: 2000 rpm
Main drive: 62 kW
Transmission ratio: 4

Milling spindle drive: 37 kW
Milling spindle speed range: 25–10000 rpm

Chuck: Forkardt power chuck, diameter 500 mm

Machine weight: 29 t
Machine dimensions: 8.2 x 5.3 x 3.6 m
