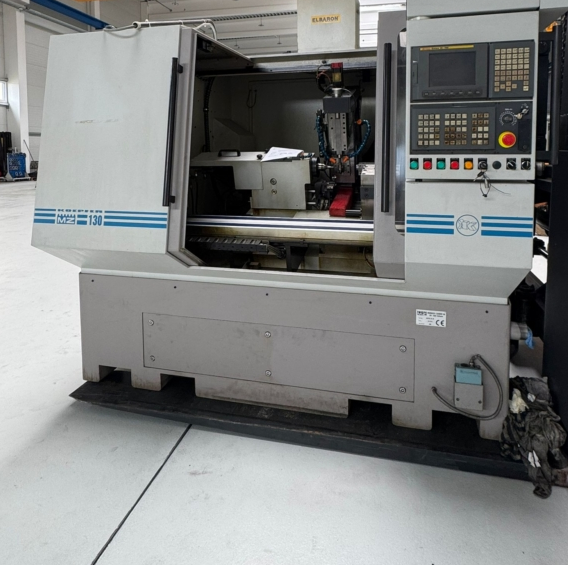

Monnier & Zahner MZ 130 1500 rpm CNC gear hobbing / worm milling machine
Ref :
2790343-3-AW
Condition :
Used
Manufacturer :
Monnier & Zahner
Model :
MZ 130
Spindle Speed :
1500 rpm
Short Description :
CNC gear hobbing / worm milling machine
Year(s) :
2008
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X-axis travel: 70 mm
Y-axis travel: 30 mm (optional up to 60 mm)
Z-axis travel: 250 mm
Control: FANUC 30i-A
Workpiece diameter: 2–55 mm
Maximum module: 1.5–2.0 mm
Machining length: 200 mm
Maximum workpiece length: 330 mm
Workpiece spindle speed: up to 1500 rpm
Milling spindle speed: up to 5000 rpm (optional up to 8000 rpm)
Milling spindle power: 1.5 kW
Torque: 4.7 Nm
Milling head swivel range (gear hobbing): ±45°
Milling head swivel range (worm gear cutting): +45° / -37°
Total power requirement: 5 kVA
Machine weight: 3500 kg
Machine dimensions: 2200 × 1800 × 1850 mm
