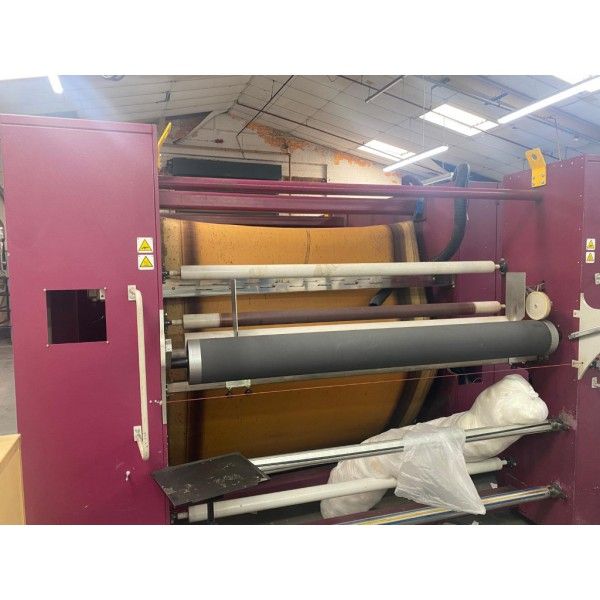

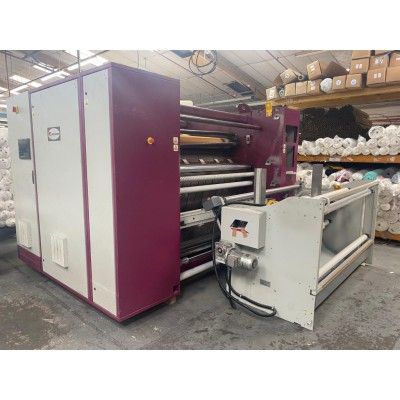

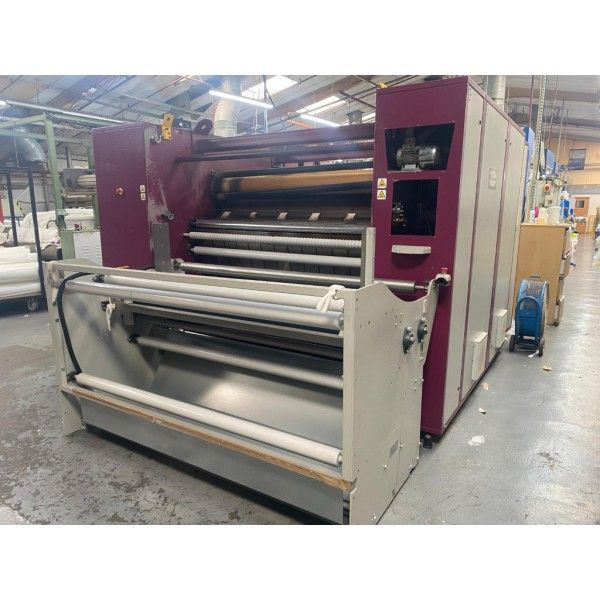

Monti Antonio 950 - 2000 185 Cm Transfer printing calender

SUBLIMATIC THERMOPRINTER
ROLLER WIDTH 2100MM.
BONDING WITH FILMS/WEBS, SPECIAL EFFECTS AND FOILS,
EMBOSSING USING RELEASE PAPER.
HEATSETTING OF 'CRUSH' EFFECT APPLICATION OF 'BLACK OUT' FILMS AND BARRIERS
CYLINDER DIAMETER: 1500 MM.
WORKING WIDTH: 1850 MM

HEATING SYSTEM AND TEMPERATURE CONTROL:
THE CYLINDER IS HEATED BY ONE RESISTOR (HEATING ELEMENT) IN A VACUUM SEALED DIATHERMIC OIL BATH,
THE TEMPERATURE OF THE CYLINDER IS SET BY A TOUCH SCREEN
AND IS REGULATED BY AN ELECTRONIC CARD.
THE TEMPERATURE CONTROL IS EQUIPPED
WITH AN ALARM SYSTEM AND A LIMITATION SYSTEM OF MAXIMUM 230 C
THERE IS A TECNOCABLAGGI TRANSFORMER AND A GALLETT AIR CONDITIONING UNIT INCLUDED.
