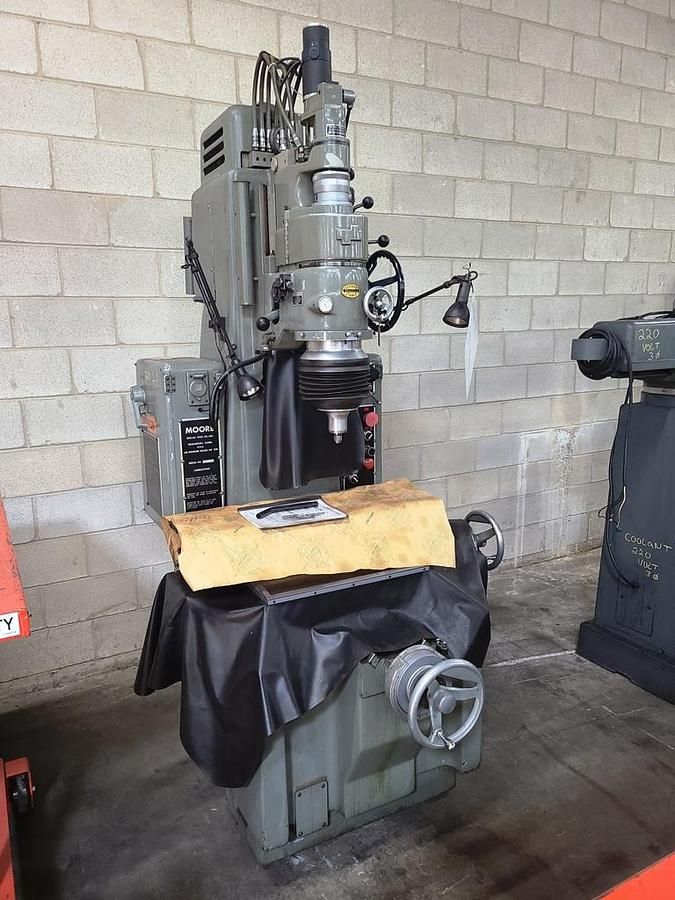

Moore G18

Table Size: 11" x 24"
Longitudinal Table Travel: 18"
Cross Table Travel: 11"
Spindle Head Vertical Travel: 12-5/8" Manual
Spindle Travel: 3-5/8" Power
Distance Table to Spindle: 2" Min. to 18" Max.
Center of Spindle Back to Column Ways: 10"
Center of Spindle Back to Below Column Ways: 13-1/2"
Variable Spindle Rotation Speeds: 25–225 RPM
Variable Spindle Feeds: 2–120 SPM
Range of Hole Sizes That Can Be Ground: 1/64" to 3-1/2" Dia.
Moore Jig Grinding Head
11" x 24" x 4" High T Slotted Sub Table
Vinyl Way Cover Material Around Table
Hardened V Shaped Table Ways
Hardened Saddle Ways
Operation Manual
Wired for Single Phase, 60 Hz, 220 Volts
Overall Machine Size: 48" L-R x 72" F-B x 88" H
Weight: 4,000 Lbs
