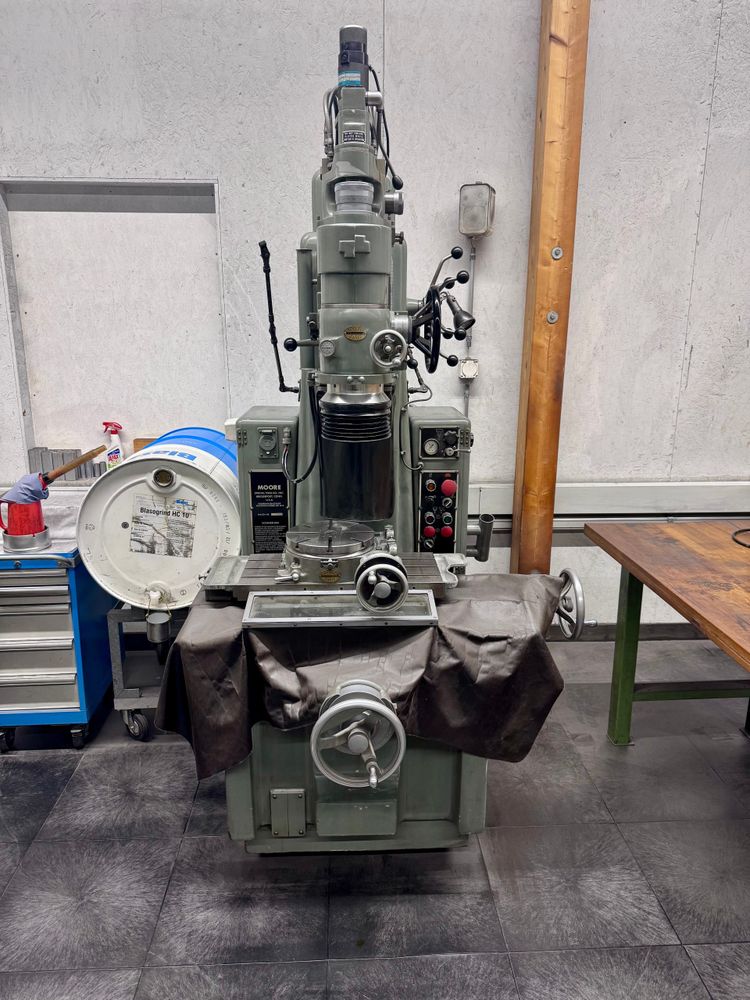

Moore G18

X-axis travel: 420 mm
Y-axis travel: 270 mm
Table size: 254 x 482 mm
Throat depth: 254 mm
Extended throat depth: 318 mm
Grinding spindle speed range: 12,000 – 60,000 rpm
Spindle stroke: 92 mm
Spindle speeds: 90 rpm
Spindle speeds: 136 rpm
Spindle speeds: 184 rpm
Spindle speeds: 280 rpm
Stroke rate: 2–120 strokes at 51 mm
Accuracy: 1.25 µm over 30 mm
Air supply pressure: 7 bar
Machine weight: approx. 1,700 kg
Space requirement: approx. 1.45 x 1.2 x 2.4 m

Features / Options:
Precision jig grinding machine
