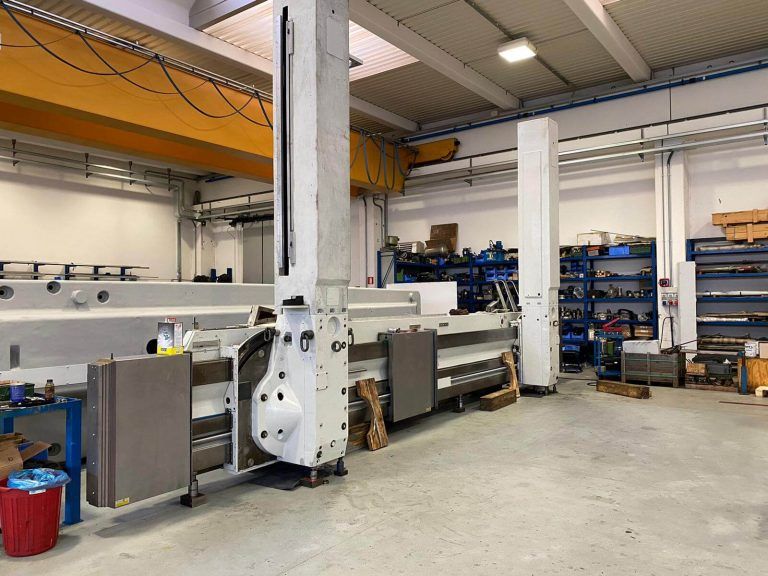

Morando KR 50/65 Table diameter 5000 mm

X-axis travel 3400 mm
X'-axis travel 3400 mm
Z-axis travel 2000 mm
Z'-axis travel 2000 mm
C RAM drilling spindle ISO 50 tool holder
C RAM drilling spindle rotation speed 0-2000 rpm
C RAM drilling spindle motor 28 kW
RAM turning spindle hydraulic tool holder
RAM turning spindle internal/external coolant passage
Control Siemens 840 SL CNC
SIEMENS SINAMICS motor package
HEIDENHAIN optical scales
Bar capacity/spindle capacity 100 T
Max. turning diameter between columns 6500 mm
Turning height 4000 mm
Max. passage under crossbeam 4100 mm
Vertical travel of crossbeam 3800 mm
Spindle motor power 80 kW
Spindle rotation speed range 1: 0-7 rpm
Spindle rotation speed range 2: 7-20 rpm
Spindle rotation speed range 3: 20-60 rpm
Feed speed X/X' axis 0-6000 mm/min
Feed speed Z/Z' RAM axis 0-6000 mm/min
Installed power approximately 120-130 kW
Machine width 12000 mm
Machine depth 7500 mm
Machine height 11000 mm
No. 1 RAM turning tool holder
No. 1 RAM with ISO 50 drilling/milling spindle
