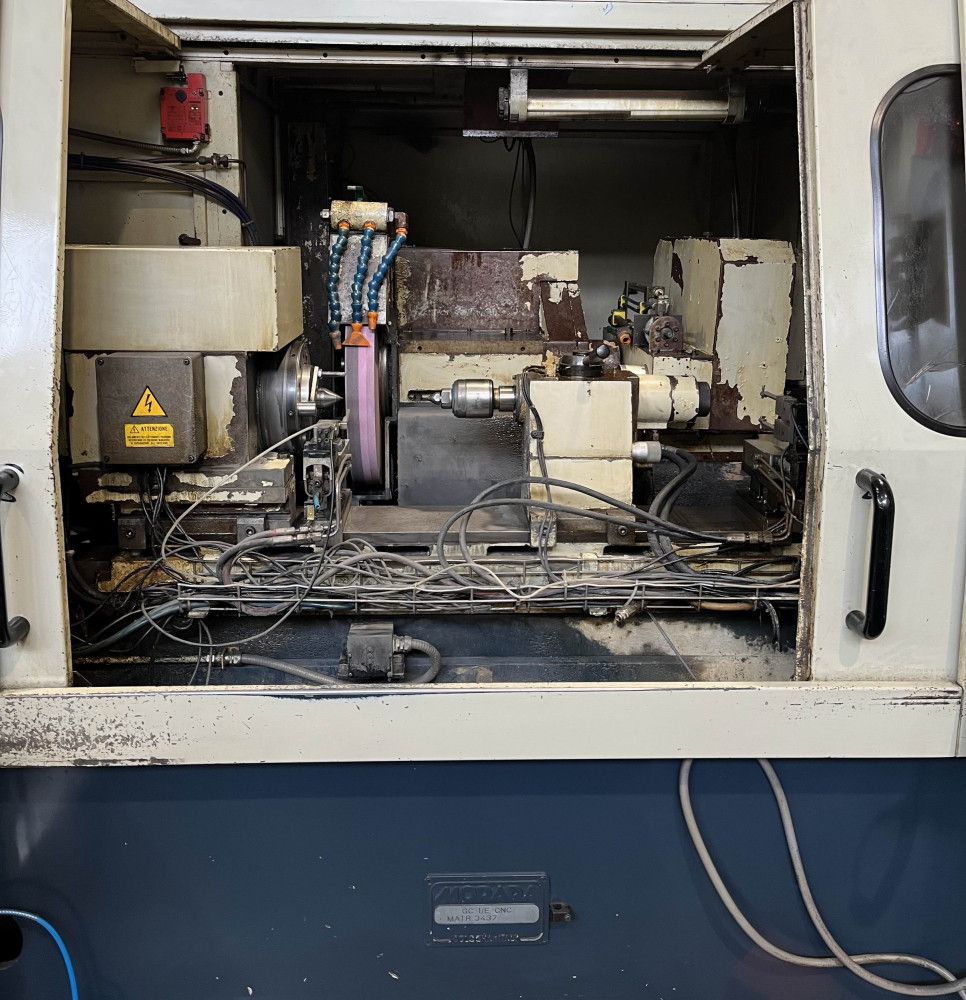

Morara GC I/E CNC

- system SIEMENS
- equipped with a new MARPOSS P5
General Data & Working Capacity
- distance between spindle nose and internal wheel slide 1500 mm
- maximum grinding length (external) 800 mm
- centre height 230 mm
- external grinding wheel dimensions (diameter × width × bore) 610 × 80 × 203.2 mm
- wheel recess 270 × 20 mm
- maximum swing diameter 370 mm
- maximum weight between centres 200 kg
- maximum overhang workpiece weight 90 kg
- total installed power 25 kW
- machine weight (including accessories) 9000 kg
External Grinding Wheel Slide (X Axis)
- wheel position Left
- infeed angle 90°
- grinding wheel motor power 5.5 kW
- grinding wheel peripheral speed 45 m/s
- maximum wheel wear in diameter 180 mm
- spindle type Bearing-mounted
- manual positioning travel 160 mm
- X-axis travel 320 mm
- ball screw diameter 40 mm
- ball screw pitch 5 mm
- maximum feed rate 10 m/min
- resolution 0.0005 mm
- measuring system Rotary encoder
- drive motor AC Brushless
Internal Grinding Wheel Slide (Y Axis)
- grinding wheel motor power 5.5 kW
- grinding wheel peripheral speed 45 m/s
- spindle type Belt-driven
- manual positioning travel 160 mm
- Y-axis travel 320 mm
- ball screw diameter 40 mm
- ball screw pitch 5 mm
