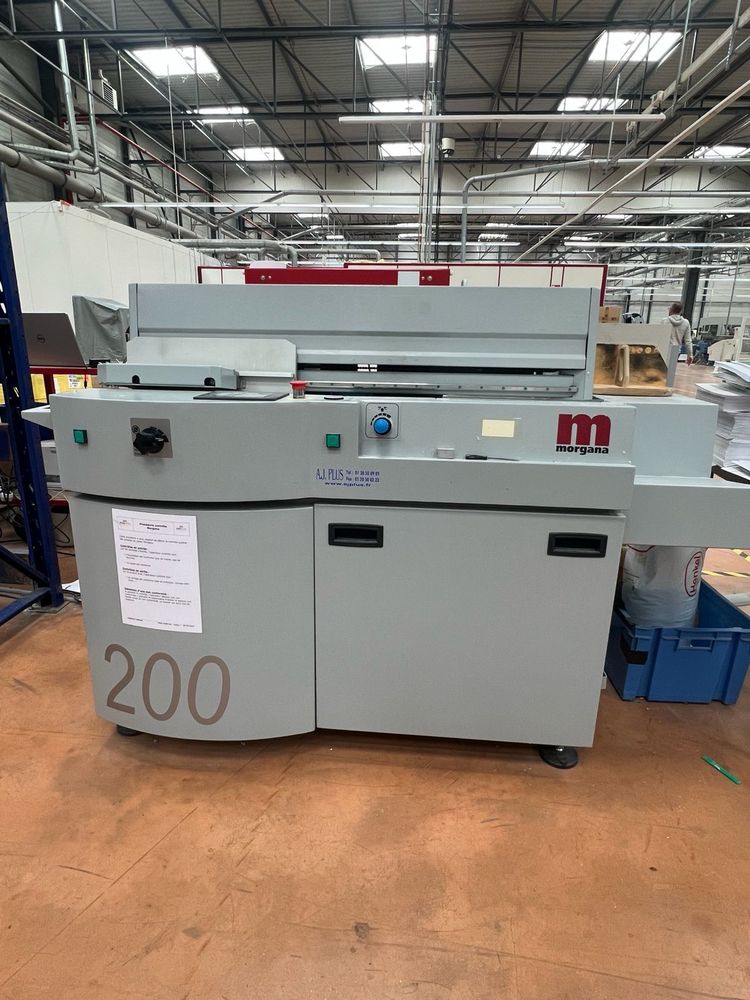

Morgana DIGIBOOK 200

Max. Book Size: 325x110 mm
Binding lenght max./min.: 120mm up to 380mm
Cover size max.: 700x380 mm
Cover size min.: 222x120 mm
Max. speed: 200 books/hour
Clamps: 1

Up to 200 books per hour
Touch screen operation with automatic set up
Binding length (spine) from 4.7′′ up to 14.9′′
Spine thickness from 0.07′′ to 1.96′′
Adjustable spine preparation by sophisticated milling and notching device
Paper chip extractor
Patented hermetically sealed PUR application system for a spine and side gluing with automatic glue cut-off
Automatic cleaning and sealing of the glue head
Electronic connection to Morgana Autocreaser Pro for cover creasing
Touch screen Spine length (Max / Min): 380mm x 120mm
Book height (Max / Min): 325mm x 110mm
Block/spine thickness: 2 – 50mm
Cover dimension maximum: 700mm x 380mm
Cover dimension minimum: 222mm x 120mm
Maximum cover weight: 400gsm
Speed: Up to 200 books per hour
Dimensions: L 1770mm x W 900mm x H 1270mm
Electrical Requirements: 220v, 16amp
Product Weight: 551 lbs (250 kg)
