Mori Seiki CNC Control 5000 RPM NL-2000SY/500 3 Axis

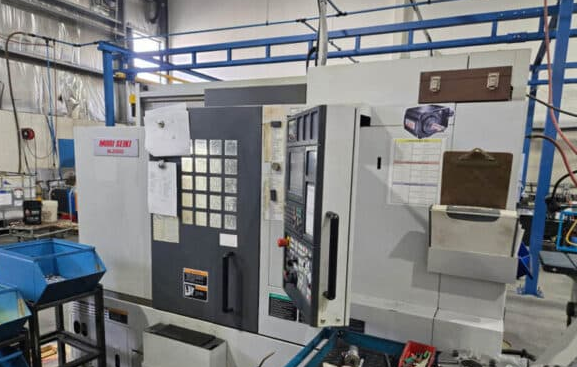

Mori Seiki NL-2000SY/500
2010

Swing Over Bed36.4”
Swing Over Corss Slide29.7”
Max. Turning Diameter14.4”
Standard Turning Diameter10.6”
Max. Turning Length20.0”
Bar Work Capacity2.5”
Through Spindle Hole Diameter2.9”
X-Axis Travel10.2”
Z-Axis Travel23.2”
Y-Axis Travel3.9” (+/-2.0)
Spindle 2 Travel (B-Axis)24.6”
Max Spindle Speed5000 RPM
2nd Spindle Speed6000 RPM
Rapid TraverseXZB: 1181 IPM / Y: 393 IPM
No. of Tool Stations12
Max. Rotary Tool Spindle Speed6000 RPM
Main Spindle Motor20 / 20 / 15 HP (50% / 30 min / cont)
Spindle 2 Motor15 / 10 HP (25% / Cont)
Milling Motor7.5 / 7.5 / 5 HP (3min / 5 min / Cont)
Machine Size107” x 79” x 84”
Machine Weight12,760 lbs

Equipped With (subject to buyer verification):
CNC Control
Tool Presetter
Y-Axis
Sub Spindle
Milling
Chuck
Chip Conveyor
