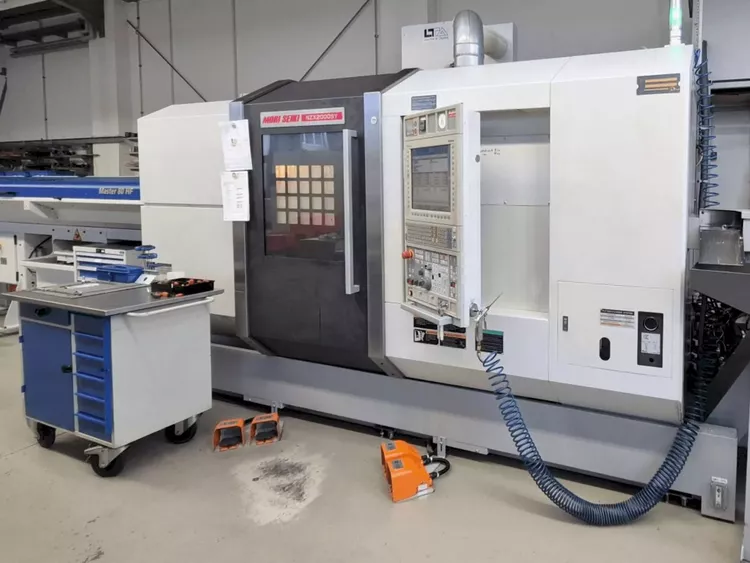

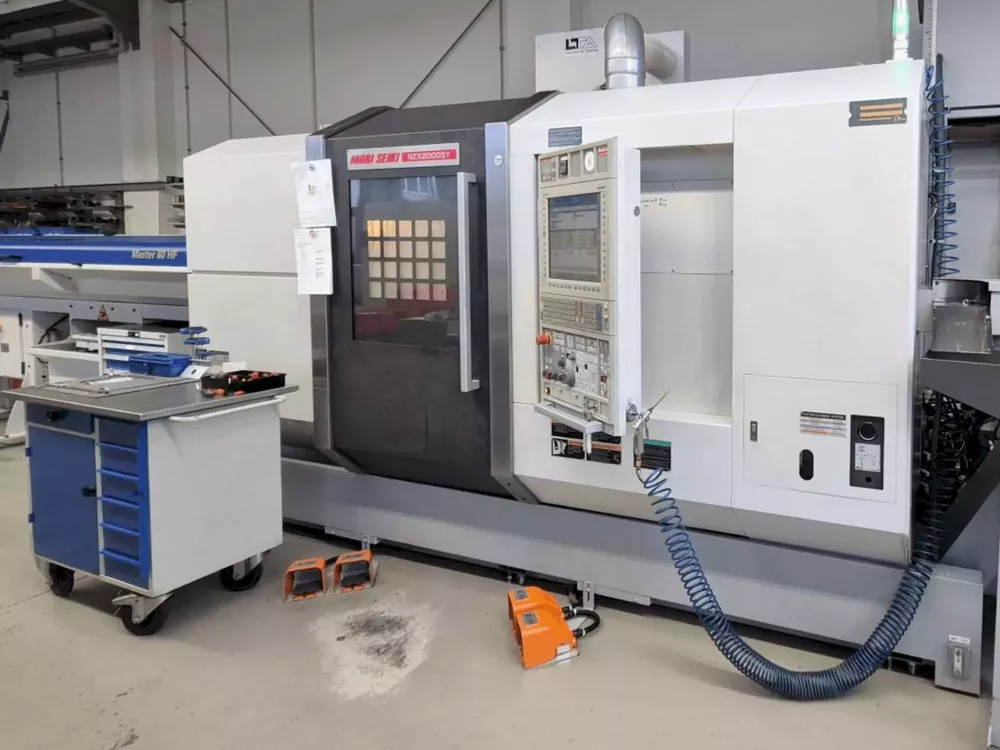

Mori Seiki Fanuc 31i A / MAPPS IV 5000 rpm NZX 2000 / 800 SY 2 Axis

Control Fanuc 31i A / MAPPS IV
Max turning diameter 200 mm
Max swing over bed 800 mm
Max turning length 810 mm
Spindle bore 73 mm
Bar capacity 65 mm
Main spindle speed 5000 rpm
Main spindle power 25 / 22 kW
Main spindle torque 358 Nm
Spindle nose A2-6
Main spindle C-axis 0.001°

Sub spindle speed 5000 rpm
Sub spindle power 25 / 22 kW
Sub spindle torque 358 Nm
Sub spindle bar capacity 65 mm
Sub spindle nose A2-6
Sub spindle C-axis 0.001°

Number of turrets 2
Tool stations 16 + 16
Driven tool positions 16 + 16
Driven tool speed 6000 rpm
Driven tool power 7.5 / 5.5 kW
Y-axis travel +65 / -45 mm
Chip conveyor
Parts catcher
Through-spindle coolant 70 bar
Coolant system Knoll compact filter KF 110/500
Coolant tank 500 l
Bar feeder IEMCA Master 80HF with accessories for bars up to 3.3 m
Collet chuck 2 x Hainbuch Spanntop
