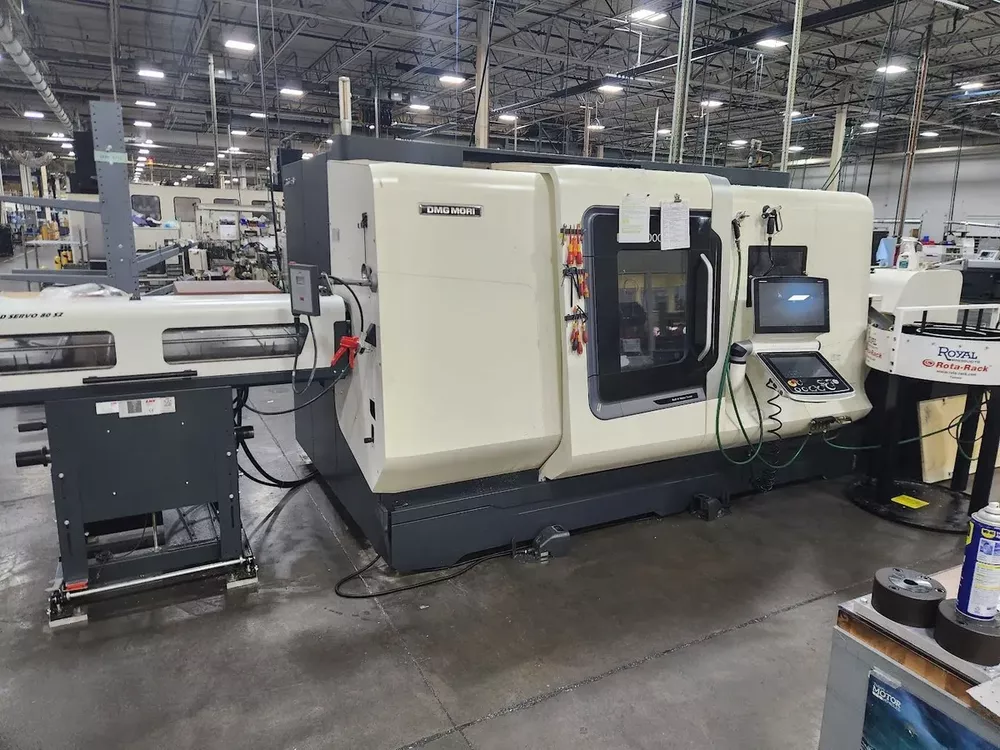

Mori Seiki FANUC 31IB CNC Control with CELOS 5,000 RPM NZX2000 T3Y3 7 Axis

X1 Axis Travel: 8.3"
X2 Axis Travel: 8.3"
X3 Axis Travel: 8.3"
Z1 Axis Travel: 11.8"
Z2 Axis Travel: 31.9"
Z3 Axis Travel: 3.9"
Y1 Axis Travel: 4.3"
Y2 Axis Travel: 4.3"
Y3 Axis Travel: 4.3"
W Axis Travel (Sub Spindle): 34.3"
Rapid Traverse X1: 1181 ipm
Rapid Traverse X2: 1181 ipm
Rapid Traverse X3: 1181 ipm
Rapid Traverse Z1: 1968 ipm
Rapid Traverse Z2: 1968 ipm
Rapid Traverse Z3: 1968 ipm
Rapid Traverse Y1: 787 ipm
Rapid Traverse Y2: 787 ipm
Rapid Traverse Y3: 787 ipm

C Axis Indexing 1
C Axis Indexing 2

FANUC 31IB CNC Control with CELOS
MAPPS IV Conversational Programming
Program Restart / Inverse Time Feed
Auto Power Off
Coolant Through Spindles
Chip Conveyor
Tool Presetters (Left/Right)
Bar Feed (LNS Quick Load Servo Short Magazine)
High Pressure Coolant System 1000 PSI
In-Machine Workpiece Unloader
Ball Screw Core Cooling

Bar Capacity 1: 2.4"
Bar Capacity 2: 2.4"
Turning Diameter: 12.5"
Turning Length: 31.8"
Distance Between Spindles: 44.4"
Swing Over Bed: 31.5"

Spindle Speed 1: 5,000 RPM
Spindle Motor 1: 33.3 hp
Spindle Nose 1: A2-6
Spindle Bore 1: 2.8"
Spindle Speed 2: 5,000 RPM
Spindle Motor 2: 33.3 hp
Spindle Nose 2: A2-6
Spindle Bore 2: 2.8"

Turret 1 Tool Positions: 16
Turret 1 Live Tool Speed: 6,000 RPM
Turret 1 Live Tool Power: 10 hp
Turret 2 Tool Positions: 16
Turret 2 Live Tool Speed: 6,000 RPM
Turret 2 Live Tool Power: 10 hp
Turret 3 Tool Positions: 16
Turret 3 Live Tool Speed: 6,000 RPM
Turret 3 Live Tool Power: 10 hp

(2) 8" 3-Jaw Hydraulic Chucks
Collet Nose Main Spindle
Full Set of Rotary and Static Tool Holders

Machine Weight: 22,000 lb
