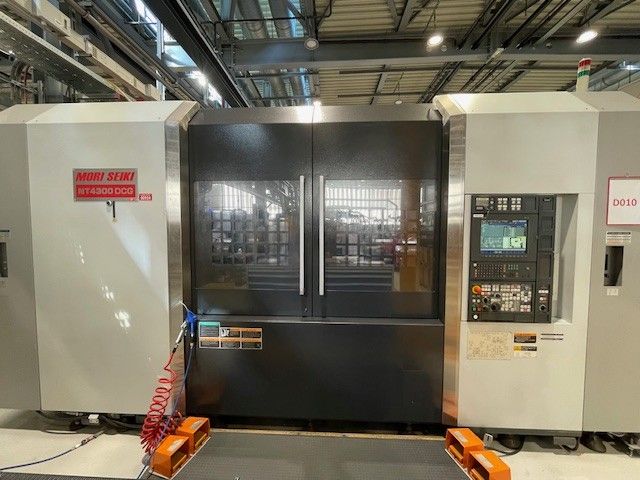

Mori Seiki Fanuc Mori Seiki MSX 701 control 3000 rpm NT 4300DCG/1500SZ 9 Axis

X1 axis travel 750 mm
Y axis travel 420 mm (+/-210 mm)
Z1 axis travel 1635 mm + 100 mm for tool change
B axis travel ±120°
X2 axis travel 195 mm
Z2 axis travel 1525 mm
SZ axis travel 1610 mm
Rapid traverse X1 Z1 50 m/min
Rapid traverse Y X2 Z2 SZ 30 m/min
C axis resolution 0.001° on main and subspindle
Fanuc Mori Seiki MSX 701 control
Islands and pocket programming MAPPS
High-speed fixed cycle MAPPS
Program memory extension 8 MB
Program restart
Direct measuring system X1 X2 Y axis
Bar loader interface
Double foot switch for both spindles
3-stage signal lamp
512 MB CF memory card
Swing diameter over cross slide tool spindle 750 mm
Swing diameter over cross slide turret 400 mm
Maximum turning diameter tool spindle 660 mm
Maximum turning diameter turret 275 mm
Maximum workpiece length 1498 mm
Maximum bar capacity 90 mm
Spindle speed range 30–3000 rpm
Main spindle motor 22/18.5 kW
Subspindle motor 22/18.5 kW
Spindle torque 1000 Nm
Driven tool speed 6000 rpm
Driven tool motor power 5.5/3.7 kW
Milling spindle speed 12000 rpm
Milling spindle motor power 18.5/11 kW
Milling spindle torque 120/44 Nm
Tool holder HSK A63
Tool magazine capacity 40 stations
Tool diameter 70/140 mm
Tool length 400 mm
Tool weight 8/10 kg
10-position turret all driven
Two 3-jaw quick-change chucks 315 mm
High pressure coolant system 12–72 bar
Maintenance-free rotary filter system
Chip conveyor
Drain system for main spindle chuck
Drain system for tool cutting edge
Coolant gun
Oil mist extractor
Measuring arm tool measurement in machine
Tool holders and reduction sleeves
Driven tools set
Clamping jaws package
Collets package
Total power requirement 90 kVA
Machine dimensions 5301 × 2997 × 2788 mm
Machine weight 26.6 t
