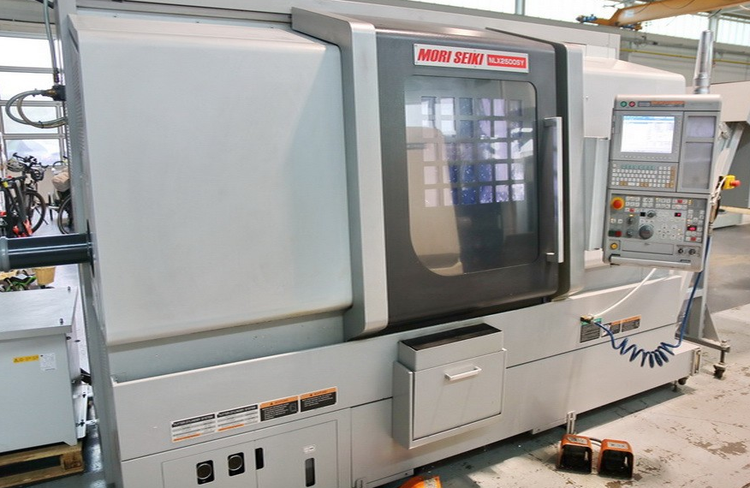

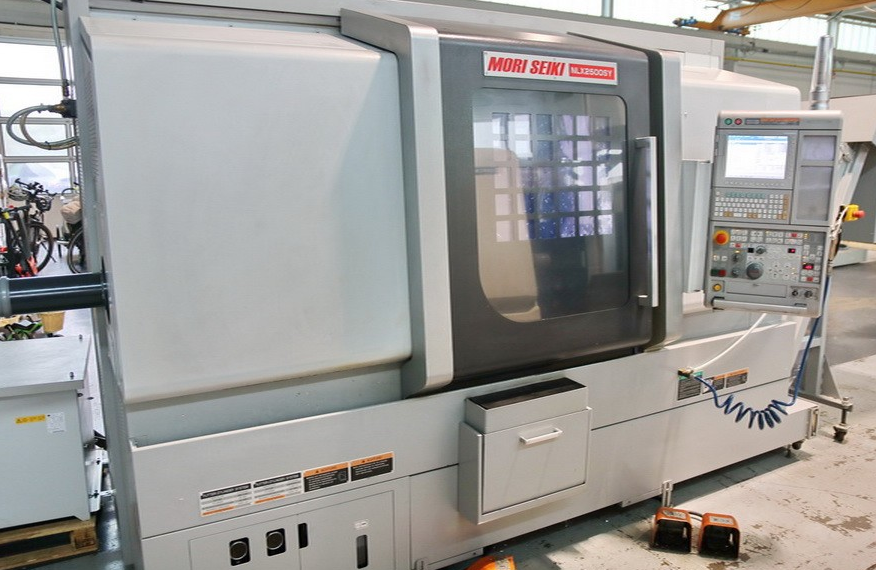

Mori Seiki M 730 BM MAPPS IV 4,000 min⁻¹ NLX 2500 SY / 700 4 Axis

X-travel: 260 mm
Z-travel: 795 mm
Y-axis: +/-50 mm
Rapid traverse (X / Y / Z): 30 / 10 / 30 m/min
C-axis: 0.001°
Control: M 730 BM MAPPS IV
Turning diameter max.: 366 mm
Swing over bed: 920 mm
Swing over guideway: 742 mm
Turning length: 705 mm
Spindle speed main: 4,000 min⁻¹
Spindle power main: 18.5 / 15 kW
Spindle nose: JIS A2-5
Spindle bearing diameter: 85 mm
Spindle bore: 43 mm
Subspindle speed: 6,000 min⁻¹
Subspindle power: 11 / 7.5 kW
Driven tool speed: 6,000 min⁻¹
Driven tool power: 5.5 / 3.7 kW
Number of tool positions: 12
Square tool shank height: 25 mm
Drill shank diameter: 50 mm
Turret change time: 0.27 sec
Total power requirement: 41 kVA
Machine weight: 6.4 t
Machine dimensions: 4.0 x 3.0 x 2.3 m

Equipment / Features
C-axis
Chip conveyor
Coolant system
Documents
Hydraulic system
Parts catcher
Subspindle
Tool drive mechanism
Tool setter
Work light
Y-axis
