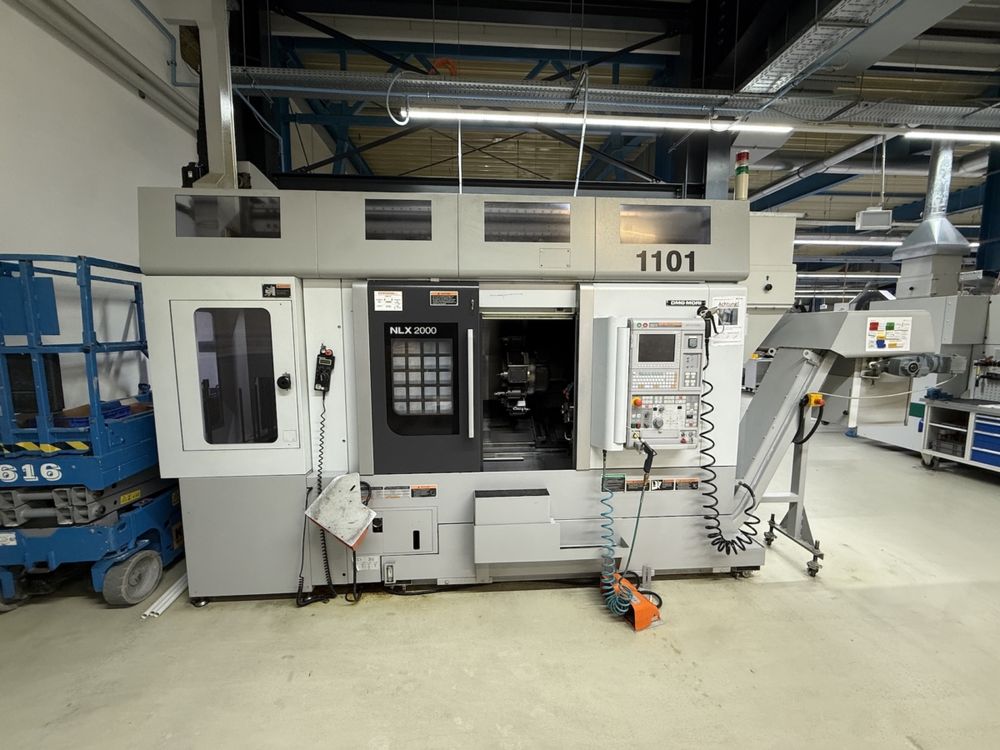

Mori Seiki M730BM 5000 rpm NLX 2000SY/500 2 Axis

Y-axis travel: ±50 mm
Control: M730BM
Center distance: 500 mm
Bar capacity: 65 mm
Main spindle speed: 5000 rpm
Main spindle power: 15/11 kW (15% duty cycle / constant)
Sub spindle speed: 6000 rpm
Sub spindle power: 11/7.5 kW (25% duty cycle / constant)
Turret: 12 stations
Tool spindle speed: 10000 rpm
Tool spindle power: 5.5/3.7 kW (5 min / constant)
3-jaw hydraulic KITAGAWA power chuck 210 mm
High/low pressure chuck system for main and sub spindle
Machine with gantry loader
Left-hand installation
14-station storage
20-pallet workpiece storage
Double gripper conveyor
MABEO high-pressure pump with 1.5 MPa filter unit
Coolant gun
Coolant sprayer on chuck main spindle
Coolant sprayer on chuck sub spindle
Coolant sprayer for machine bed enclosure
Oil mist separator
Hinged belt chip conveyor
Renishaw workpiece measuring system with optical signal transmission on sub spindle
Ball screw cooling on X-axis
Used condition
