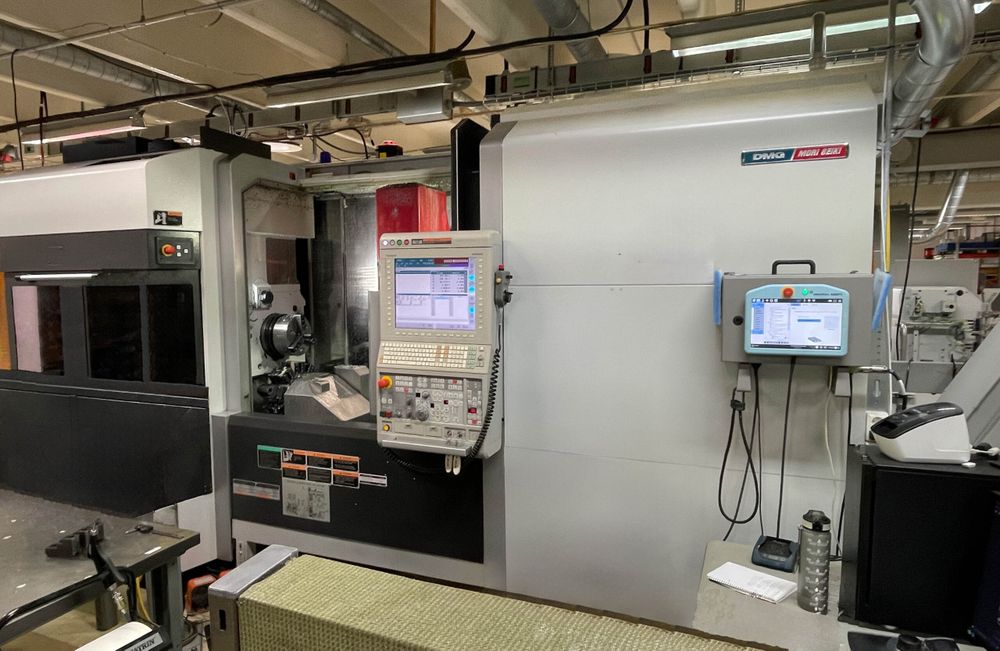

Mori Seiki MAPPS IV (MX711) 5-axis 12000 rpm NTX 2000 / 1500 SZ MAPPS-IV CNC 5 Axis

X-axis travel: Not specified
Y-axis travel: ±125 mm
Z-axis travel: Not specified
B-axis stroke: 120° (0.0001°)
C-axis main spindle stroke: 0.001°

Control system: MAPPS IV (MX711) 5-axis
Main spindle speed: 4000 rpm
Main spindle power: 26 kW
Sub spindle speed: 5000 rpm
Sub spindle power: 22 kW
Spindle bore: 91 mm
Max turning diameter: 610 mm
Turning length: 1540 mm

Boring through draw tube: 80 mm
B-axis milling power: 18.5 kW
B-axis spindle speed: 12000 rpm

Hydraulic chuck main spindle: Kitagawa BB-210 (250 mm)
Hydraulic chuck sub spindle: Kitagawa BB-208 (200 mm)
ATC tool magazine: 76 stations
High-pressure coolant: 70 bar
Work measuring system: Renishaw spindle probe OMP 60

Machine weight: 15500 kg
Machine length: 4080 mm
Machine width: 2980 mm
Machine height: 2621 mm
Delivery time: December 2025
