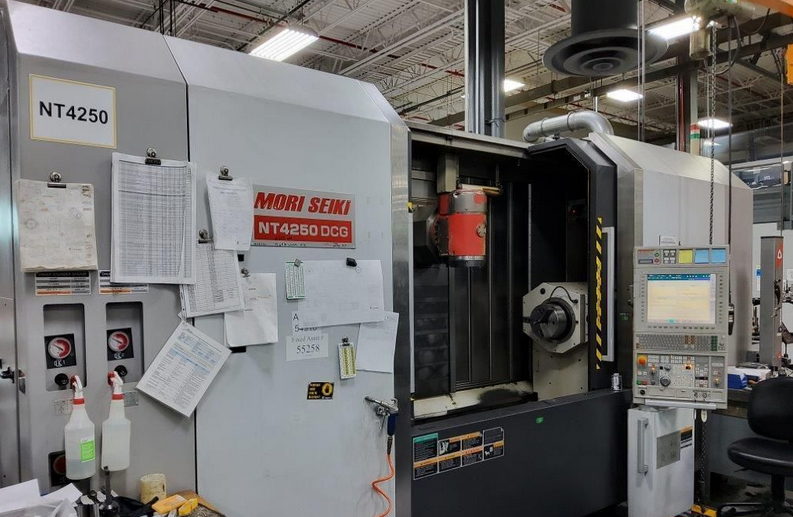

Mori Seiki Mitsubishi MSX-711IV 4000 RPM NT4250DCG/1500SZ 9 Axis

X-axis travel: 29.5 in
X2-axis travel: 7.7 in
Y-axis travel: 8.3 in
Z-axis travel: 64.9 in
Z2-axis travel: 60 in
B-axis indexing: ±120°
C1/C2-axis indexing: 0.0001°
Control: Mitsubishi MSX-711IV
MAPPS conversational programming
Renishaw probing
Tool presetter
High-pressure coolant through spindle
Chip Blaster unit
Coolant tank and pump
Bar capacity: 3.1 in
Swing: 28.7 in
Turning diameter: 25.9 in
Turning diameter, lower turret: 13.7 in
Center distance: 61.4 in
Spindle nose: A2-8
Spindle speed: 4000 RPM
Main motor: 30 HP
Sub-spindle
Sub-spindle bar capacity: 3.1 in
Sub-spindle nose: A2-8
Sub-spindle speed: 4000 RPM
Sub-spindle motor: 30 HP
Milling spindle
Milling spindle taper: KM63
Milling spindle speed: 12000 RPM
Milling spindle motor: 25 HP
Rapid live tooling
12-station lower turret
Automatic tool changer: 40 stations
10 in chuck on main spindle
10 in chuck on sub-spindle
Chip conveyor
9 axes
Machine weight: 56500 lb
