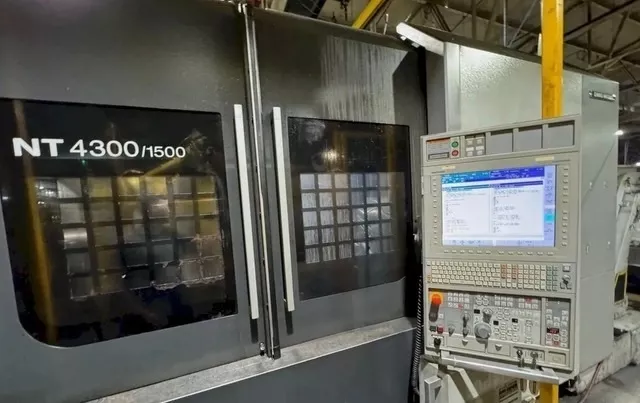

Mori Seiki MORI SEIKI MAPPS IV CNC, FANUC 31iA 3000 RPM NT4300 DCG/1500SZ 8 Axis

Swing Over Bed: 28.7 in
Turning Diameter: 25.9 in
Turning Length: 59 in
X1-Axis Travel: 29.5 in
X2-Axis Travel: 7.7 in
Z1-Axis Travel: 61 in
Z2-Axis Travel: 60 in
Y1-Axis Travel: -8.3 in
W-Axis Travel Sub Spindle: 63 in
B-Axis Head Travel: +/- 120 Degrees
B-Axis Head Indexing: 0.0001
C-Axis Indexing 1: 0.0001
C-Axis Indexing 2: 0.0001
Control: MORI SEIKI MAPPS IV CNC, FANUC 31iA
Chuck Size 1: 15 in
Bar Capacity 1: 3.15 in
Spindle Speeds 1: 3,000 RPM
Spindle Horsepower 1: 30 hp
Chuck Size 2: 15 in
Bar Capacity 2: 3.15 in
Spindle Speeds 2: 3,000 RPM
B-Axis Milling Spindle Taper: Capto C6
B-Axis Milling Spindle Speed: 12,000 RPM
B-Axis Milling Spindle Horsepower: 24.7 hp
ATC For Milling Spindle: 100
Tool Diameter: 2.7 in / 5.5 in
Tool Length: 15.7 in
Tool Weight: 22 lb
Rapid Traverse Rate - X1: 1,968 ipm
Rapid Traverse Rate - X2: 1,181 ipm
Rapid Traverse Rate - Z1: 1,968 ipm
Rapid Traverse Rate - Z2: 1,181 ipm
Rapid Traverse Rate - Y1: 1,181 ipm
Turret Tool Positions 1: 12 station
Weight: 62,250 lb
Probing
Scale Feedback X-Axis
Chip Blaster High Pressure Coolant System
Chip Conveyor
Tool Presetter
Assorted Capto Holders
Hobbing Software
Chiller
