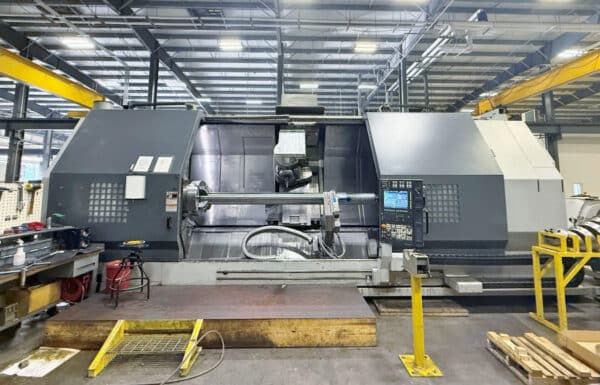

Mori Seiki MORI SEIKI MSX-502III Control 1,000 RPM MT4000C/3000 5 Axis

MORI SEIKI MT4000C/3000
Year: 2007

Max Cutting Diameter: 37″
Max Cutting Length: 120″
X-Axis Travel: 39.6″
Y-Axis: Yes
Y-Axis Travel: 11.81″ (+/- 5.9″)
Z-Axis Travel: 124″
Chuck Size: 24″
Spindle Bore: 10.8″
Spindle Nose: A1-20
Spindle Motor: 50 HP
Spindle Speed: 1,000 RPM
Rapid Traverse X-Axis: 944 IPM
Rapid Traverse Y-Axis: 944 IPM
Rapid Traverse Z-Axis: 787 IPM
B-Axis Spindle Motor: 20 HP
B-Axis Milling Speed: 6,000 RPM
B-Axis Spindle Taper: Capto C8
B-Axis Tool Positions: 120
B-Axis Travel: -120° / +105°
Weight: 95,000 lb

Completely Rebuilt Milling Spindle in 2023
MORI SEIKI MSX-502III Control
B-Axis Milling Spindle (6,000 RPM, Capto C8)
Y-Axis
50 HP Turning Spindle
24″ 4-Jaw Bison Manual Chuck
10.8″ Spindle Bore
3000 mm / 120″ Cutting Length
120 Tool Positions
ROHM SLZ-325 Hydraulic Steady Rest (1.5″ – 9.4″ Capacity)
Long Boring Bar Attachment (Needs Realignment)
Tailstock
Chip Conveyor
Cooljet High-Pressure Coolant Unit (1,000 PSI)
Royal Mist Collector (FX1200)
