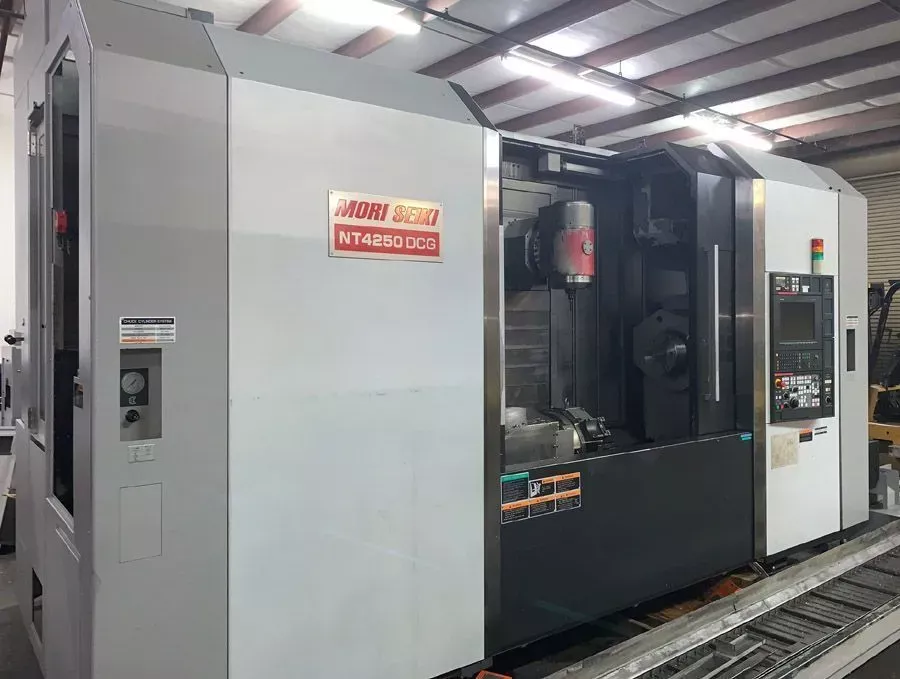

Mori Seiki Mori Seiki MSX-711 III CNC color control 4,000 RPM NT 4250 DCG / SZM 5 Axis

X1-axis travel: 29.5 in
X2-axis travel: 7.7 in
Y1-axis travel: 16.6 in
Z1-axis travel: 68.3 in
Z2-axis travel: 60 in

Rapid traverse X1: 1968 ipm
Rapid traverse X2: 1181 ipm
Rapid traverse Z1: 1968 ipm
Rapid traverse Z2: 1181 ipm
Rapid traverse Y1: 1181 ipm

B-axis head travel: ±120°
B-axis head indexing: 0.0001°
C-axis indexing 1: 0.0001°
C-axis indexing 2: 0.0001°

Control: Mori Seiki MSX-711 III CNC color control
MAPPS III conversational programming
Manual pulse generator
Tool presetter
Renishaw workpiece measuring system
Cool Jet high pressure coolant through spindle
4 external M-codes
Coordinate system rotation
5-axis simultaneous control
B-axis 0.0001° positioning full contouring
Bar capacity main spindle: 3.1 in
Bar capacity sub spindle: 3.1 in
Swing over bed: 28.7 in
Turning length: 60.7 in
Distance between spindles: 73.3 in
Spindle speed main: 4,000 RPM
Spindle motor main: 30 hp
Spindle nose main: A2-8
Spindle bore main: 3.6 in
Sub spindle speed: 4,000 RPM
Sub spindle motor: 30 hp
Sub spindle nose: A2-8
Sub spindle bore: 3.6 in
Milling spindle taper: Capto C6
Milling spindle speed: 12,000 RPM
Milling spindle motor: 25 hp
Rapid traverse X1: 1968 ipm
Rapid traverse X2: 1181 ipm
Rapid traverse Z1: 1968 ipm
Rapid traverse Z2: 1181 ipm
Rapid traverse Y1: 1181 ipm
Chuck size main: 10 in
Chuck size sub: 10 in
3-jaw hydraulic chuck main
3-jaw hydraulic chuck sub
New 12 in 3-jaw hydraulic chuck
ATC for milling spindle: 40 tools
Turret positions: 12 station
Turret rotary tool speed: 6,000 RPM
Turret rotary tool motor: 7.5 hp
Maximum tool diameter: 2.7 in
Maximum tool diameter (with adjacent empty): 5.5 in
Maximum tool length: 15.7 in
Maximum tool weight: 17.6 lb
Sub turret with milling spindle
Royal mist collector
Machine weight: 56,320 lb
