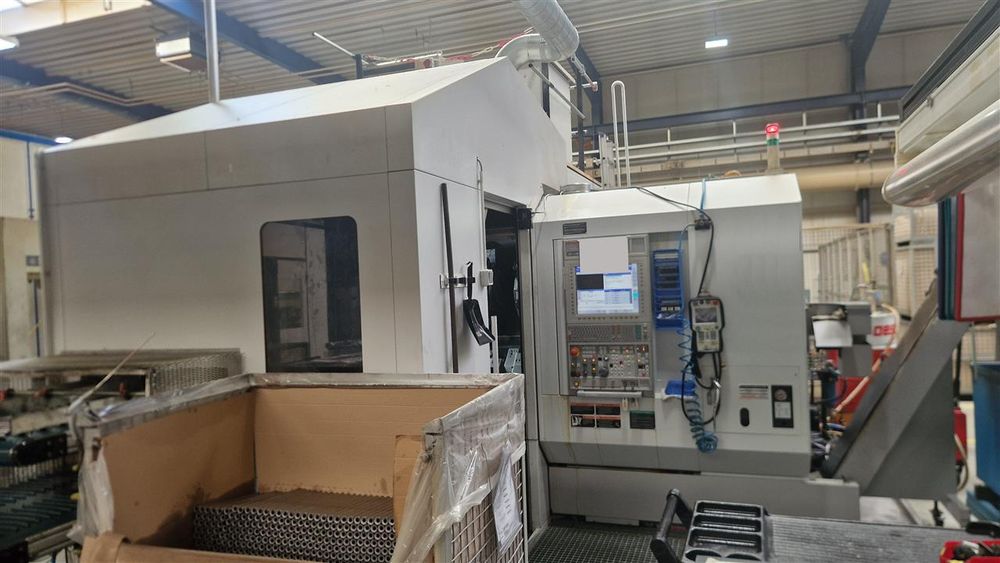

Mori Seiki MSX-701 IV (MAPPS 4) 5,000 RPM NZ 2000 T3Y2 & Lehmann Robot System 5 Axis

Control: MSX-701 IV (MAPPS 4)
Max Turning Diameter: 320 mm
Standard Turning Diameter: 200 mm
Max Workpiece Diameter: 300 mm
Distance Between Centers: 1130 mm
Max Turning Length: 810 mm
Bar Capacity: 65 mm

X-Axis Travel: 210 mm (X1/X2/X3)
Y-Axis Travel: 110 mm (+65/-45, +45/-65)
Z-Axis Travel: 300 mm / 810 mm (multi turret configuration)
B-Axis Travel: 870 mm
C-Axis Resolution: 0.001°

Main Spindle Speed: 5,000 RPM
Sub Spindle Speed: 5,000 RPM
Spindle Nose: JIS A2-6
Spindle Bore: 73 mm
Spindle Bearing Diameter: 120 mm

Driven Tool Speed: 6,000 RPM
Driven Tool Positions: 16 × 3 = 48
Turrets: 3
Tool Stations: 48 total
Turret Index Time: 0.18 sec
Rapid Traverse: X 30 m/min, Y 20 m/min, Z 50 m/min

Main Spindle Motor Power: 25 / 22 kW
Driven Tools Power: 7.5 / 5.5 kW
Total Power Requirement: 92.7 kVA

Chip Conveyor
Coolant System
C-Axis on Main and Sub Spindle
Tool Setting System
Overhead Parts Gripper
Lehmann Robot Loading/Unloading System
Part Conveyor Belt System

Machine Weight: 9,400 kg
Machine Dimensions: 4.0 × 2.8 × 2.4 m
