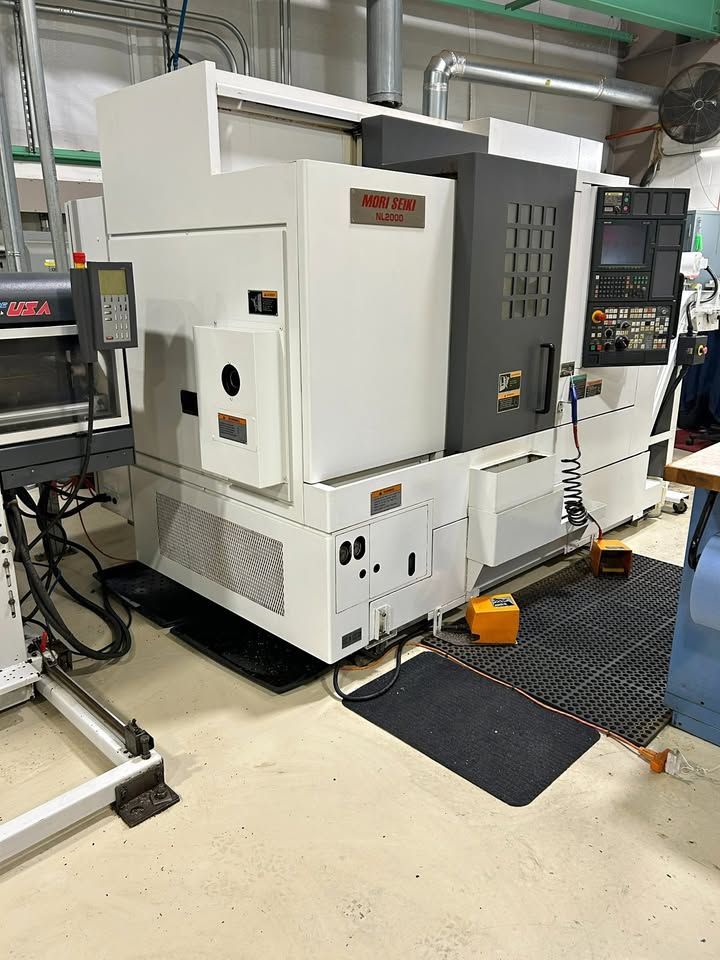

Mori Seiki MSX-850 CNC Control 5,000 RPM NL-2000SY 5 Axis

X-Axis Travel 10.2"
Y-Axis Travel 5.9"
Z-Axis Travel 23.2"
B-Axis Travel 21"
Rapid Traverse Rate X/Z/B 1181 IPM
Rapid Traverse Rate Y 393.7 IPM
C-Axis Indexing 0.001°
MSX-850 CNC Control
Toolsetter
Parts Catcher
Full C-Axis Main and Sub Spindles
Chip Conveyor
Barfeed Interface
Bar Capacity 2.5"
Swing Over Bed 36.4"
Swing Over Cross Slide 29.7"
Max Turning Diameter 14"
Standard Turning Diameter 10.8"
Max Turning Length 20"
Main Spindle Speed 5,000 RPM
Sub Spindle Speed 6,000 RPM
Spindle Nose Main JIS A2-6
Spindle Nose Sub JIS A2-5
Main Spindle Bore 2.9"
Sub Spindle Bore 2.4"
Main Spindle Motor 20/15 HP
Sub Spindle Motor 15/10 HP
Rotary Tool Speed 6,000 RPM
Rotary Tool Motor 7.5/5 HP
12 Position Turret
Tool Shank Size 1"
Boring Bar Capacity Main 2"
Boring Bar Capacity Sub 1.25"
Machine Dimensions 150" x 81" x 84"
Machine Weight 12,760 LBS
