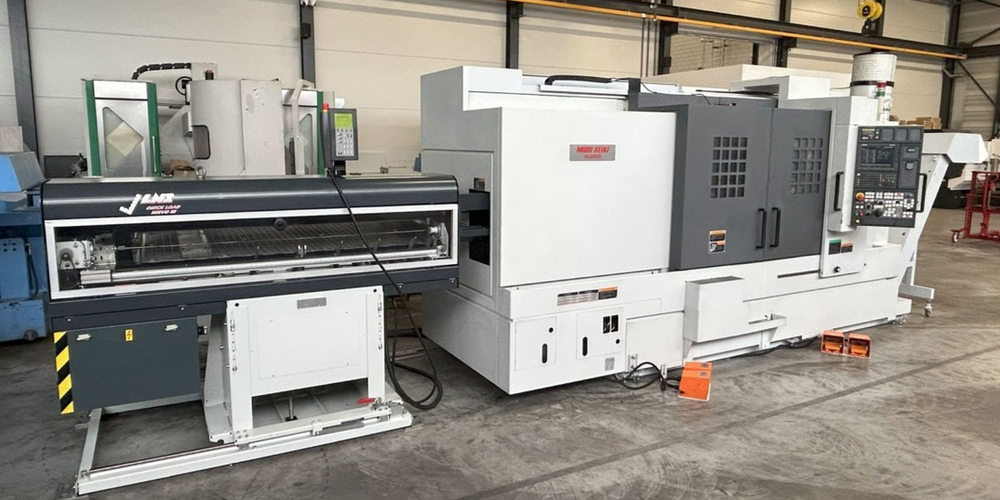

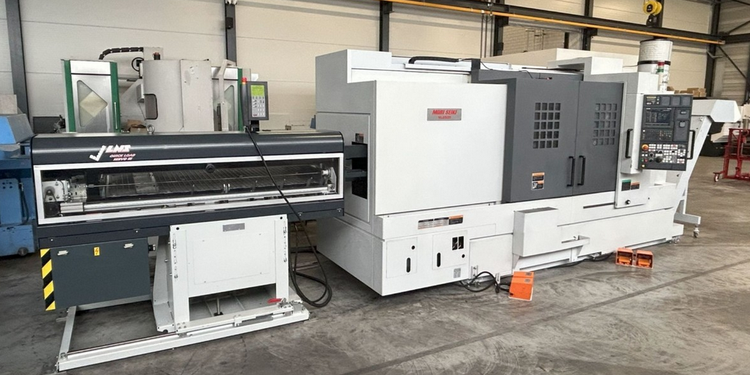

Mori Seiki MSX 850-III (Mitsubishi) 4000 1/min NL 2500SY/1250 4 Axis

MORI SEIKI NL 2500SY/1250
Year 2008

Control MSX 850-III (Mitsubishi)
Turning diameter 275 / 366 mm
Spindle bore diameter 80 mm
Spindle Speed 4000 1/min
Spindle motor 18.5/15 kW
Movement X-axis 260 mm
Movement Y-axis +50/-50 mm
Movement Z-axis 1345 mm
W-axis movement (subspindle to mainspindle) 1275 mm
Minimum indexing C-Axis main Spindle 0,001 °
Minimum Indexing C Axis Sub Spindle 0,001 °
Number of tools on turret 12 x
Number of driven tools 12 x
Spindle speed driven tools 6000 1/min
Tool Taper BMT
Spindle motor driven tools 5,5 / 3,7 kW
Bar feeder LNS Quick Load Servo III
Length 4339 mm
Width 2232 mm
Height 2232 mm
Weight 7600 kg
