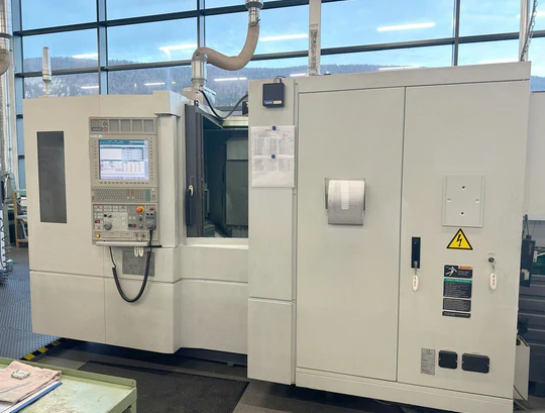

Mori Seiki NH 4000 DCG 4 Axis

Longitudinal travel (X) 560 mm
Transversal travel (Y) 560 mm
Vertical travel (Z) 630 mm
Rapid traverse 50 m/min
Workpiece height 900 mm
Workpiece diameter 630 mm
Table load max 400 kg
Pallets 2
Pallet length 400 mm
Pallet width 400 mm
Pallet change time 6 s
Tool magazine capacity 60
Spindle nose BT40
Spindle speed up to 14000 rpm
Voltage 400 V 50 Hz
Machine weight 9600 kg
Machine length 4004 mm
Machine width 2400 mm
Machine height 2711 mm

Coolant system
Chip conveyor
2-way pallet changer
Electronic handwheel
Lamp
Oil mist extractor
Blow gun
Rinsing guns
