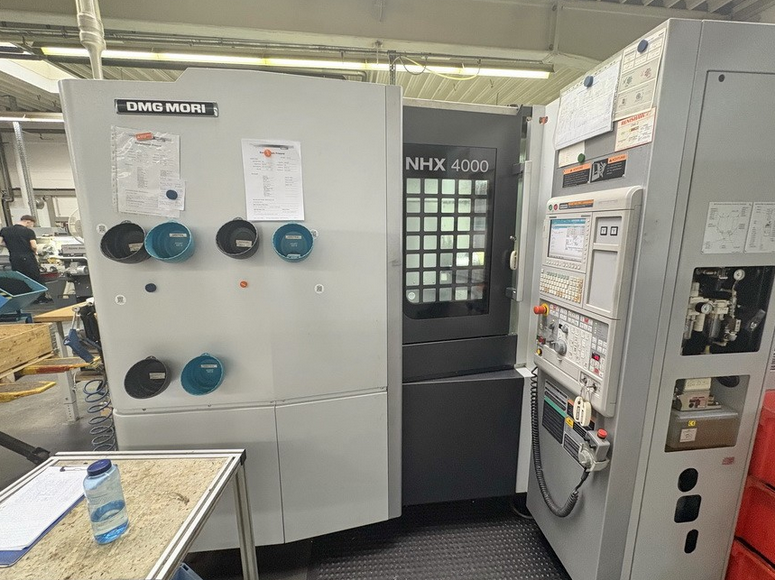

Mori Seiki NHX 4000-206 4 Axis

X axis travel: 560 mm
Y axis travel: 560 mm
Z axis travel: 660 mm
B axis: 0.001°
Control: M 730 BM MAPPS IV
Pallet changer: 2 positions
Pallet size: 400 × 400 mm
Max. workpiece weight: 400 kg
Max. workpiece diameter: 630 mm
Max. workpiece height: 900 mm
Distance spindle center to table: 80 - 640 mm
Distance spindle nose to center of table: 70 - 730 mm
Spindle speed max.: 12,000 min⁻¹
Spindle power: 15 / 11 kW
Tool taper: SK 40
Spindle diameter in front bearing: 80 mm
Tool presetter positions: 60
Max. tool diameter: 70 mm
Max. tool diameter with free toolbox: 170 mm
Max. tool length: 450 mm
Max. tool weight: 8 kg
Tool to tool change time: 0.9 sec
Chip to chip change time: 2.8 - 9.9 sec
Feed speeds max.: 60,000 mm/min
Rapid traverse X/Y/Z: 60 m/min
Total power requirement: 35 kVA
Machine weight: 7.9 t
Machine dimensions: 5.5 × 3.5 × 2.6 m
Chip conveyor
Coolant system
Electronic hand wheel
High pressure coolant
Test probe
Through spindle coolant
Triple signal light
