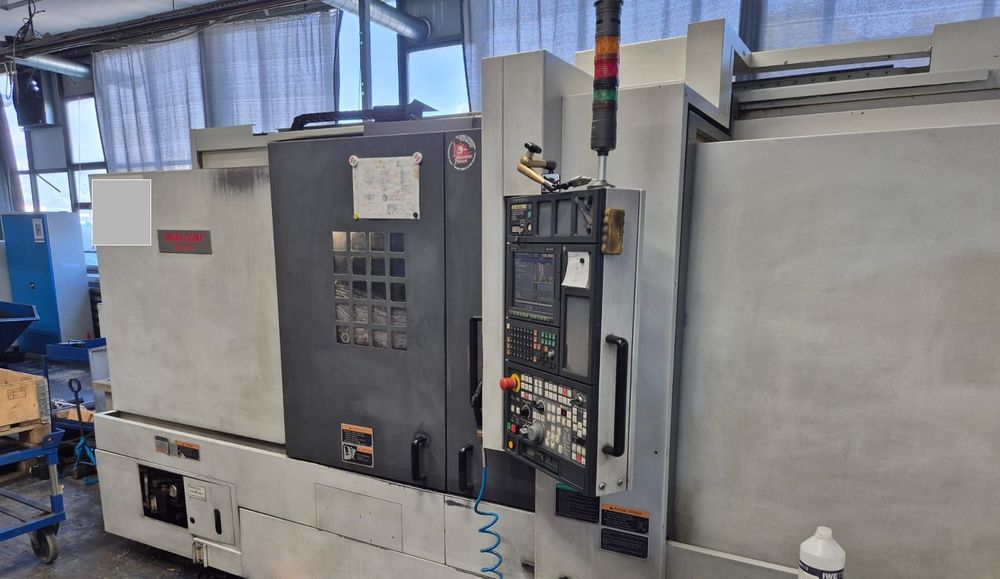

Mori Seiki NL 3000Y/1250 4 Axis

X-axis travel: 280 mm
Z-axis travel: 1370 mm
C axis max speed: 400 rpm
Y axis
C axis
Control: MSX-850 IV
Driven tools
Fully programmable NC tailstock
Separate tailstock motor
Bar capacity: 90 mm
Swing over bed: 995 mm
Swing over cross slide: 825 mm
Turning diameter: 420–500 mm
Max turning length: 1260 mm
Spindle speed: 3000 rpm
Spindle motor power: 30/25 kW
Spindle bore: 105 mm
Spindle nose: A2-8
Driven tool power: not specified
Number of tool positions: 10
Chuck size: 300 mm
Through-hole: 90 mm
Chip conveyor LNS
Coolant capacity: 370 l
Installed power: 38.7 kVA
Machine height: 2390 mm
Machine width x depth: 4532 x 2291 mm
Machine weight: 7600 kg
