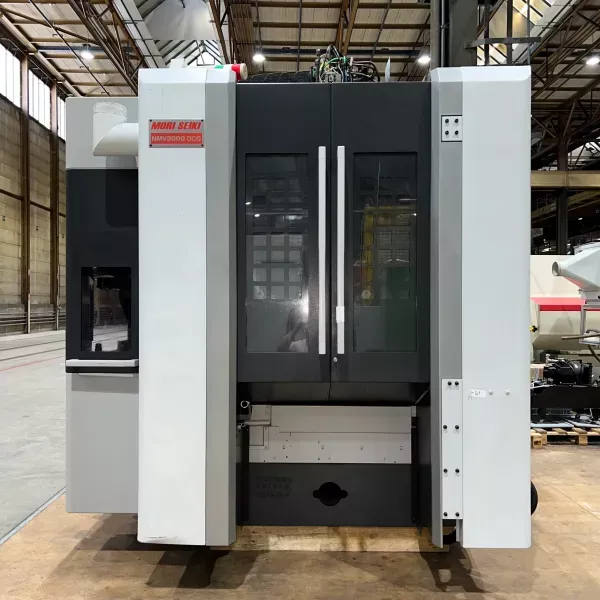

Mori Seiki NMV3000DCG 3 Axis

X-axis travel 500 mm
Y-axis travel 350 mm
Z-axis travel 510 mm
B-axis +160° to -180°
C-axis 360°

Table size 350 mm
Distance table surface to floor 850 mm
Max workpiece height 300 mm
Max workpiece weight 100 kg
B-axis rotation speed 50 rpm
C-axis rotation speed 150 rpm
Tool to tool 1.8 sec
Number of tools 61
Max tool diameter with adjacent tool 90 mm
Max tool diameter without adjacent tools 125 mm
Max tool length 300 mm
Max tool weight 8 kg
Max tool torque 11 Nm
Spindle speed 12,000 rpm
Spindle acceleration time 1.92 sec
Spindle deceleration time 1.60 sec
Precision 2.92 μm
Resolution 0.01 μm
Machine dimensions 2500 x 3756 x 3250 mm
Machine weight 9400 kg
