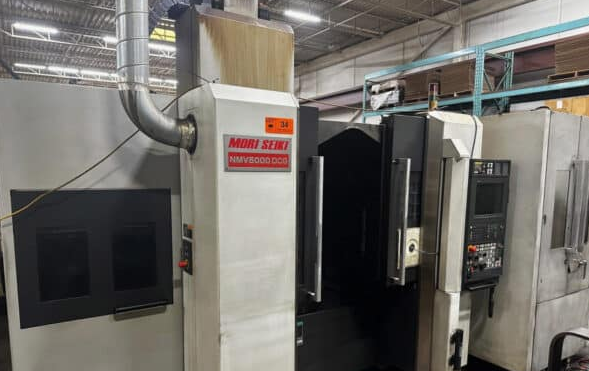

Mori Seiki NMV5000 DCG 5-Axis CNC Vertical Machining Center 5 Axis

Table working surface 19.7"
Table load capacity 660 lbs
Max workpiece swing diameter 27.5"
Max workpiece height 17.7"
X-axis travel 28.7"
Y-axis travel 20.1"
Z-axis travel 20.1"
Distance table surface to spindle gauge plane 5.1"–25.2"
B-axis travel +160° to -180°
C-axis travel 360°
Max spindle speed 12,000 RPM
Spindle motor 20/25 HP
Spindle taper No. 40
Rapid traverse X&Y 1968 IPM
Rapid traverse Z 1575 IPM
Magazine capacity ATC
Max tool diameter 3.5"/4.9"
Max tool length 11.8"
Max tool weight 17.6 lbs
Tool change time 1.8 sec tool to tool
Floor space 109" x 155" x 129"
Machine weight 27,280 lbs
CNC control MSX-711 III
Pallet changer
Manual pulse generator
