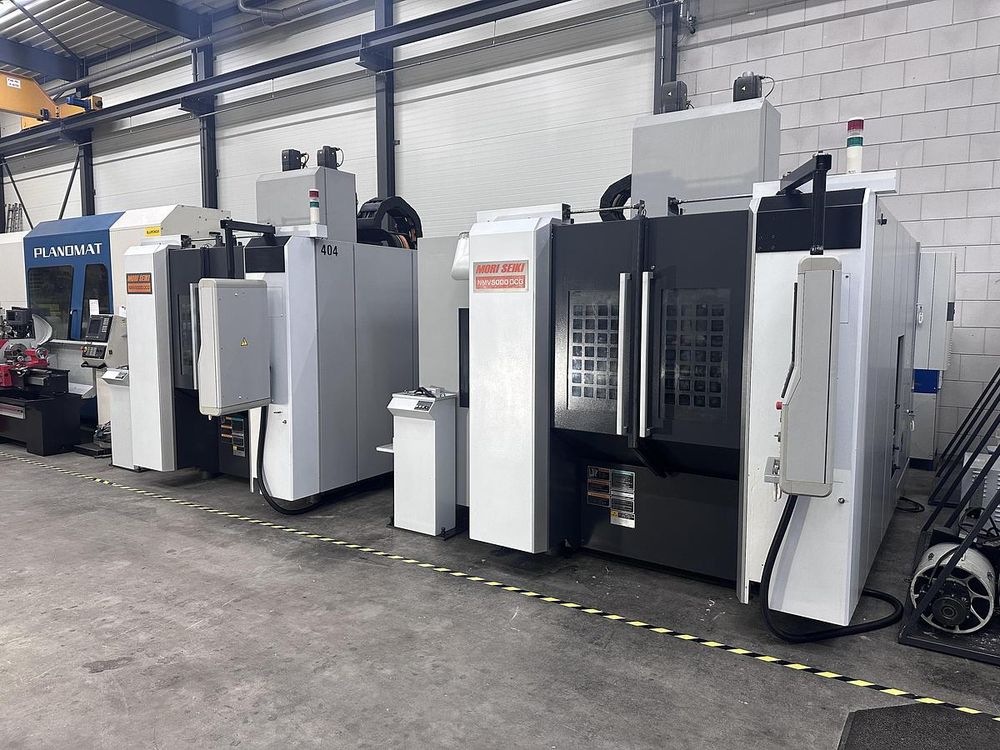

Mori Seiki NMV5000 DCG 5 Axis

X-axis travel: 730 mm
Y-axis travel: 510 mm
Z-axis travel: 510 mm
B-axis travel: -180° to +160°
C-axis travel: 360°
Control: Siemens 840D
Table diameter: Ø500 mm
Spindle taper: HSK A63
Spindle speed: 0 – 12,000 rpm
Spindle power: 18.5 kW
Tool magazine capacity: 180 tools
Max. workpiece weight table: 300 kg
Table height (from floor): 870 mm
Max. workpiece height: 450 mm
Table rotation speed (turning mode): 0 – 1200 min⁻¹
Table rotation speed (standard): 0 – 120 min⁻¹
Max. tool diameter: 125 mm
Max. tool length: 300 mm
Max. tool weight: 8 kg
X+Y rapid feed: 50 m/min
Z rapid feed: 40 m/min
Coolant tank capacity: 750 L
Machine dimensions (LxWxH): 2691 x 3965 x 3264 mm
Machine weight: 15,000 kg
Original Mori Seiki tool holder rack
KNOLL FKA/500 band filter system with 3 filter rolls
Filtermist FX5000 emulsion extraction
Renishaw OMP60 3D probe
Chip conveyor
Spindle cooler
Original documentation and electrical schematics
