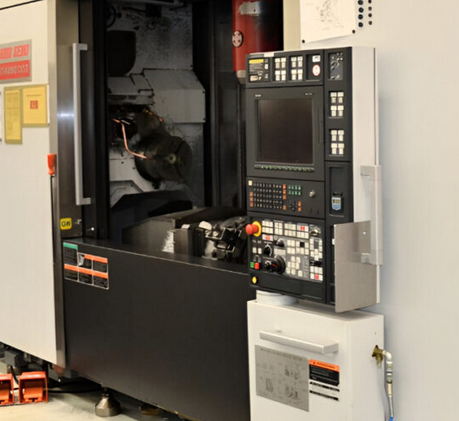

Mori Seiki NT4250 DCG/1500 SZ 4 Axis

X-axis travel: 750 mm
Z-axis travel: 1550+100 mm (for ATC)
B-axis rotation: ±180° (0.001°)
C-axis rotation: ±210°
Lower turret X-axis travel: 195 mm
Lower turret Z-axis travel: 1525 mm
Control: FS-31IA5 (MAPPS 4)
Bar capacity: 91 mm
Swing over bed: Ø730 mm
Max turning diameter: Ø660 mm
Turning length: 1542 mm
Distance between spindle centers: 1862 mm
Turning diameter for lower turret: Ø350 mm
Main spindle speed: 4000 rpm
Main spindle motor power: 22/18.5 kW (30min/cont)
Counter spindle speed: 4000 rpm
Counter spindle motor power: 22/18.5 kW (30min/cont)
Turn-mill spindle speed: 12000 rpm
Turn-mill spindle motor power: 18.5/11 kW
Tool magazine capacity: 100 tools
Tool holder type: CAPTO C6
Max tool diameter: 140 mm
Max tool weight: 8 kg
Lower turret tool slots: 12
Coolant pressure: 28 bar
Electronic handwheel
Chip conveyor
Rinsing gun
Signal lamp
Work area light
Internal coolant supply
Measuring probe
Gantry loader LG-10 (10 pallets, 75 kg per pallet, Ø200 x 150 mm pieces)
Machine length: 6800 mm
Machine width: 3200 mm
Machine height: 2900 mm
Machine weight: 25600 kg
