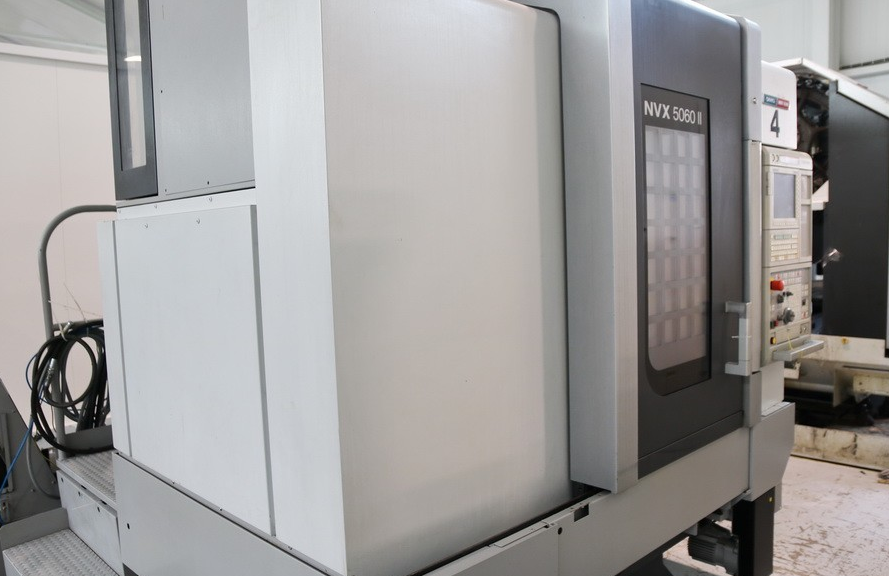

Mori Seiki NVX 5060 II / 40 3 Axis

X-axis travel: 600 mm
Y-axis travel: 530 mm
Z-axis travel: 510 mm
Control: M 730 BM MAPPS IV
Spindle speed: 10,000 rpm
Spindle motor power: 15 / 11 kW
Tool taper: SK 40
Transmission ratio: 1
Spindle front bearing diameter: 80 mm
Table surface area: 900 x 600 mm
Max table load: 800 kg
T-slots: 6 x 18 x 100 mm
Distance spindle to table: 150–660 mm
Tool magazine capacity: 30 tools
Max tool diameter: 80 mm
Max tool diameter with free toolbox: 150 mm
Max tool length: 300 mm
Max tool weight: 8 kg
Tool-to-tool change time: 1.3 sec
Chip-to-chip change time: 3.45 sec
Rapid traverse X/Y/Z: 30 m/min
Feed rate range: 1–30,000 mm/min
Tip feed: 0–5,000:20 mm/min
Total power requirement: 30 kVA
Machine weight: 6 t
Machine dimensions: 4.5 x 3.5 x 2.7 m

Automatic Tool Changer
Chip Conveyor
Coolant System
Various Tooling
Documentation
High-Pressure Coolant
Paper Band Filter Knoll KF 110 / FKA 500
Work Light
