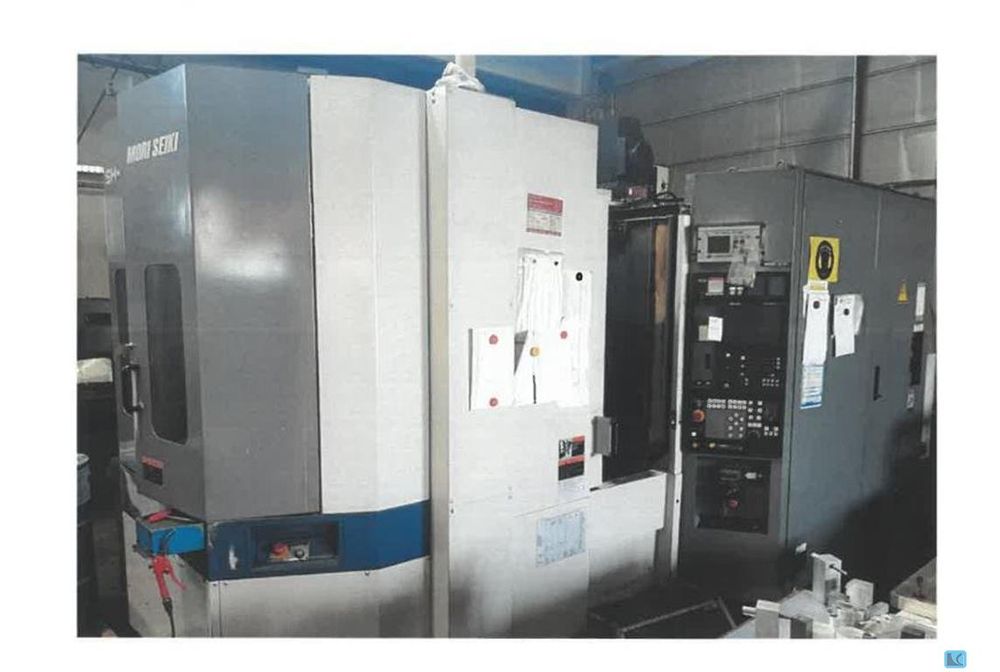

Mori Seiki SH 500/40 4 Axis

X-axis travel 630 mm
Y-axis travel 600 mm
Z-axis travel 650 mm
Rapid traverse X/Y/Z 32 m/min
B-axis positioning 1° (non-continuous)
Control MSC 502 (Fanuc 16)
Pallet changer 2 pallets
High pressure coolant through spindle
Spindle speed 12000 rpm
Spindle motor 22 / 18.5 kW
Tool magazine 60 positions
Tool taper BT40
Max tool length 360 mm
Max tool weight 12 kg
Tool change time 1.3 sec
Pallet size 500 x 500 mm
Max table load 500 kg
Max working diameter 610 mm
Total power requirement 50 kVA
Dimensions 3.3 x 5.8 x 3.2 m
Weight 14000 kg
Chip conveyor
Spindle load monitor
Coolant gun
Chamfering and corner rounding
Tool life management
Interface for coolant through spindle
