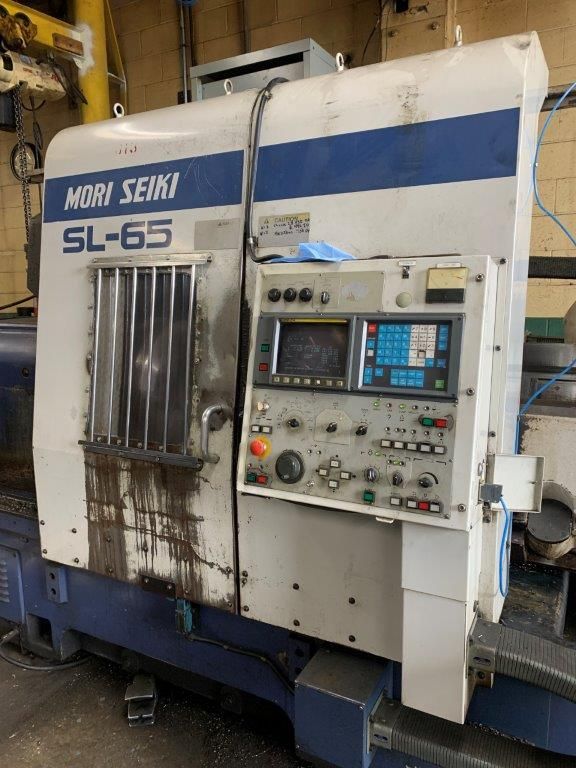

Mori Seiki SL-65B Chuck Size: 24"

MORI SEIKI SL-65B
1993

Bar Capacity: 4.75"
Max Swing Over Bed: 35"
Max Swing Over Front Cover: 27.6"
Spindle Motor: 50 / 40 HP
Spindle Speed: 4 – 1010 RPM
Spindle Nose: A2-11
Spindle Bore: 6.6"
Tools: 12
Rapid Traverse Rate X/Y: 197 IPM
Rapid Traverse Rate Z: 315 IPM
X-Axis Travel: 17.1"
Z-Axis Travel: 33.9"
Turret Index (Single Step): 2.9 sec
Turret Index (Full): 5.7 sec
Machine Weight: 20,000 lbs
Max Turning Diameter: 32.2"
Max Turning Length: 31.1"
Spindle Torque: 2242 ft-lbs
Tailstock Taper: MT#4

MORIC MF-T4 (FANUC 0T) CNC Control
9" Monochrome CRT
24" Hydraulic Chuck
Tow-Along Tailstock
Side Exit Chip Conveyor
Two Gear Range Headstock
Slant Bed Box Way Construction
