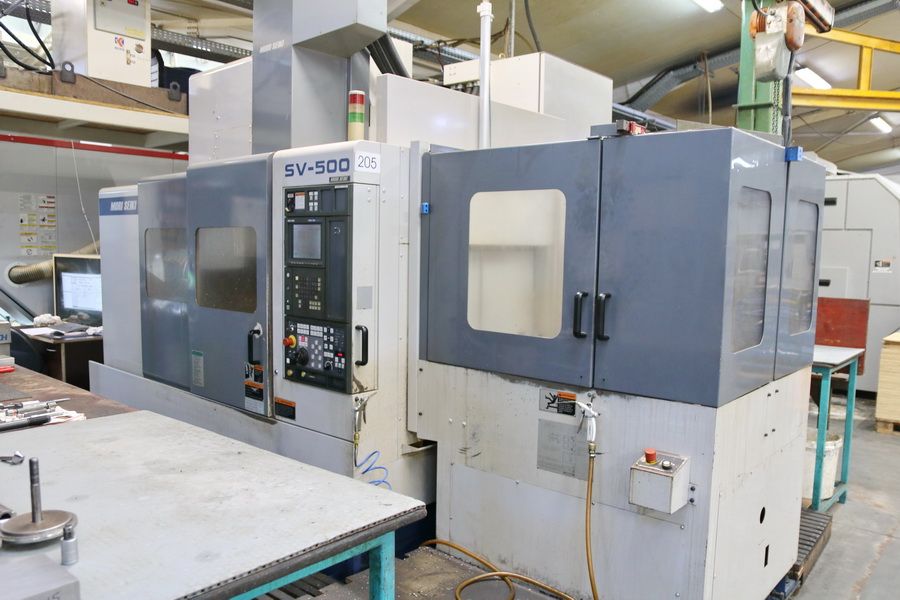

Mori Seiki SV 500 B/40 3 Axis

X travel 1020 mm
Y travel 510 mm
Z travel 510 mm

Control MSC 501 Fanuc
Spindle speed up to 10,000 rpm
Spindle power 22 / 18.5 kW
Spindle bearing diameter 85 mm
Tool taper BT40

Table size (APC) 1200 x 480 mm
Max table load (APC) 550 kg

Tool magazine capacity 30 tools
Max tool diameter 80 mm
Max tool diameter free adjacent space 125 mm
Max tool length 300 mm
Max tool weight 8 kg

Rapid traverse 32 m/min
Feed rate up to 16,000 mm/min
Tipp feed 0 ~ 1,260 mm/min

Pallet changer 2 positions
Chip conveyor 2x
Through spindle coolant included
High pressure coolant included
Signal light included

Total power requirement 59.5 kVA
Machine weight 6.9 t
Machine dimensions 3.9 x 2.7 x 2.9 m
