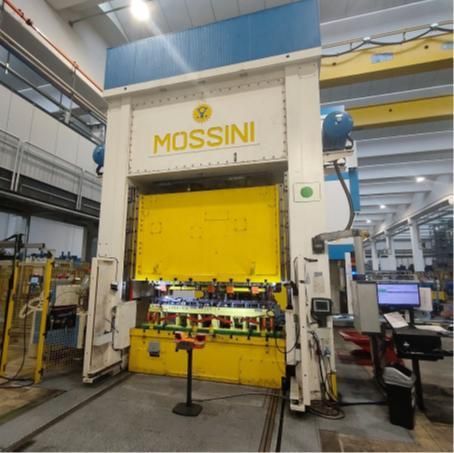

Mossini PDM/2B/LD400 400 T

Press Force: 400 T
Link Drive Kinematics
Rated Capacity (at 10 mm): 400 T
Number of Connecting Rods: 2
Slide Stroke: 250 mm
Slide Adjustment: 350 mm
Continuous Speed: 26 – 82 spm (variable)
Shut Height (SDAU over bolster): 900 mm
Slide Dimensions (L-R × F-B): 2850 × 1300 mm
Front Moving Bolster Dimensions: 2850 × 1300 mm
Clearance Between Uprights (L-R): 2870 mm
Clearance Between Uprights (F-B): 950 mm
Moving Bolster Height: 750 mm
Max Sheet Width: 800 mm
Max Sheet Thickness: 4 mm
Coil Weight Capacity: 10,000 kg
Press Weight: 32,000 kg
Link drive system
Sheet feeding line included
