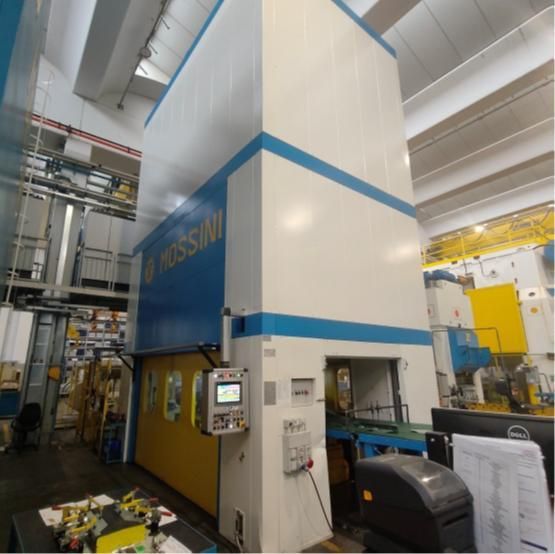

Mossini PDM/2B/LD630 630 T
Ref :
2779845-3-AW
Condition :
Used
Manufacturer :
Mossini
Model :
PDM/2B/LD630
Pressure :
630 T
Year(s) :
2016
Quantity :
1
Location :
Seller or machines location:
AMERICA North (USA-Canada-Mexico)
AMERICA North (USA-Canada-Mexico)
Press Force: 630 T
Link Drive Kinematics
Rated Capacity (at 13 mm): 630 T
Number of Connecting Rods: 2
Slide Stroke: 400 mm
Slide Adjustment: 500 mm
Continuous Speed: 24 – 53 spm (variable)
Shut Height (SDAU over bolster): 1200 mm
Slide Dimensions (L-R × F-B): 3200 × 1200 mm
Side Moving Bolster Dimensions: 3200 × 1200 mm
Clearance Between Uprights (L-R): 3300 mm
Clearance Between Uprights (F-B): 1700 mm
Moving Bolster Height: 500 mm
Max Sheet Width: 1300 mm
Max Sheet Thickness: 5 mm
Coil Weight Capacity: 10,000 kg
Press Weight: 155,000 kg
Link drive system
Feed line coil handling system included
