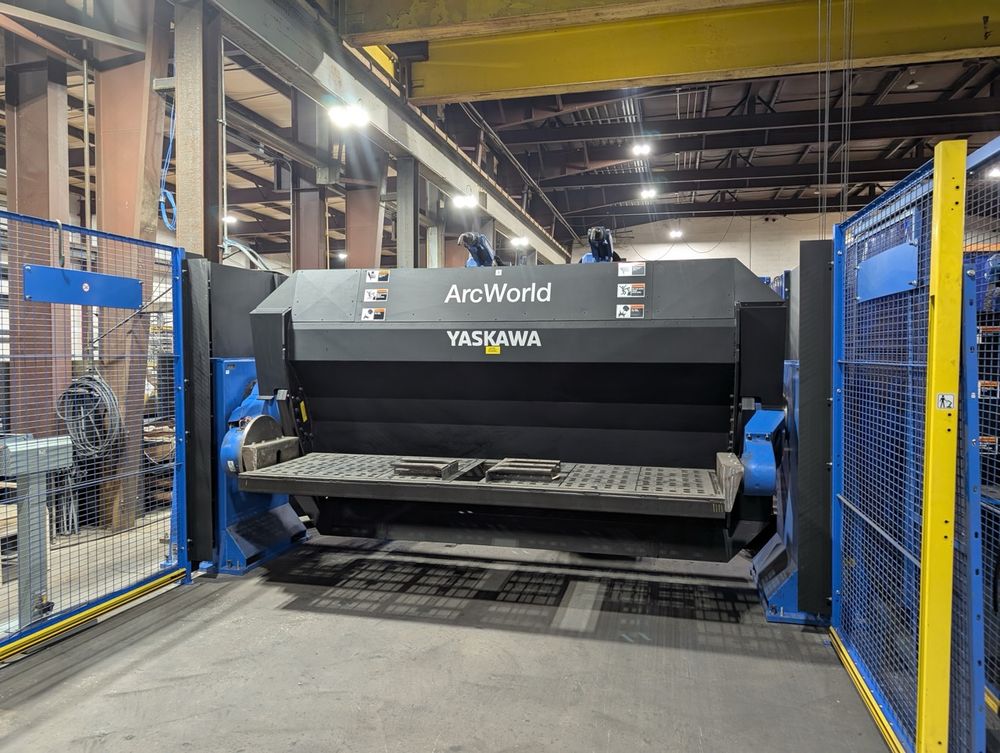

Motoman, Yaskawa ArcWorld 6200-750 6 Axis 26.5 lbs

System Type: Pre-engineered robotic arc welding cell
Configuration: Dual-zone Ferris wheel positioner with two robots
Robot: AR1440
Robot Axes: 6
Robot Payload: 26.5 lbs
Robot Max Reach: 56.7"
Robot Repeatability: ±0.0008"
Robot Weight: 330 lbs
Positioner: RM2-750
Positioner Type: Ferris wheel-style, servo-driven
Positioner Payload per Side: 1,653 lbs
Positioner Rotation Clearance: Requires 96–120” front clearance
Positioner Control: 3-axis AC servocontrol
Fixture Diameter Capacity: Up to ~60” depending on tooling
Controller: YRC1000
Controller Dimensions: 19.7" W × 15.7" H × 7.9" D
Controller Weight: 55 lbs
Controller Power Supply: 200–230V AC, 3-phase, 50/60 Hz
Controller Cooling: Forced air ventilation
Controller Interface: Touchscreen pendant with Ethernet, USB, and I/O ports
System Footprint Width: 240"
System Footprint Depth: 120"
System Footprint Height: 96–108"
Safety Features: Light curtains, interlocked doors, emergency stops
Mobility: Forklift pockets and lifting eyes for relocation
Equipped With: 2 AR1440 Robots
Equipped With: RM2-750 Positioner
Equipped With: Fence Kit
Equipped With: Operator Pedestal
Equipped With: Pneumatic Valve Kit
Equipped With: Miller Auto Continuum 350 Power Source (2)
Equipped With: Miller Wire Feeders (2)
Equipped With: Torch Cleaner
