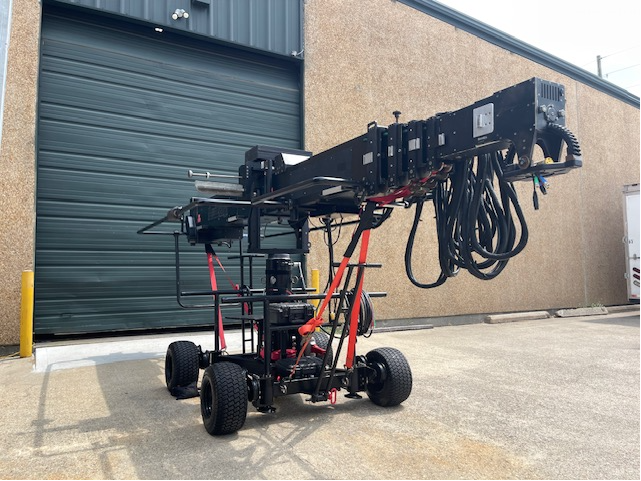

Moviebird 35/45 Telescopic Crane

Max. nose load: 50 kg/110 lbs
Max. extension speed: 1,5 m/s /4,9 ft/s
Arm weight with a Yoke: 610 kg/ 1345 lbs
Base weight: 215 kg/ 474 lbs
Base weight with column: 300 kg /661 lbs
One counterweight: 16 kg /35,3 lbs
Amount of counterweights: 60
Crane weight incl. counterweight: 1910 kg/ 4210 lbs
Height: 11,1 m /36,4 ft
Overall lenght: 16,2 m/ 53,15 ft
Telescopic range: 11,15 m/ 36,5 ft
Maximum reach: 13,8 m/ 45,25 ft
Rails: 1 m /3,3 ft
Min. door height: 2,05 m/ 6,72 ft
Amount of counterweight carts: 6
