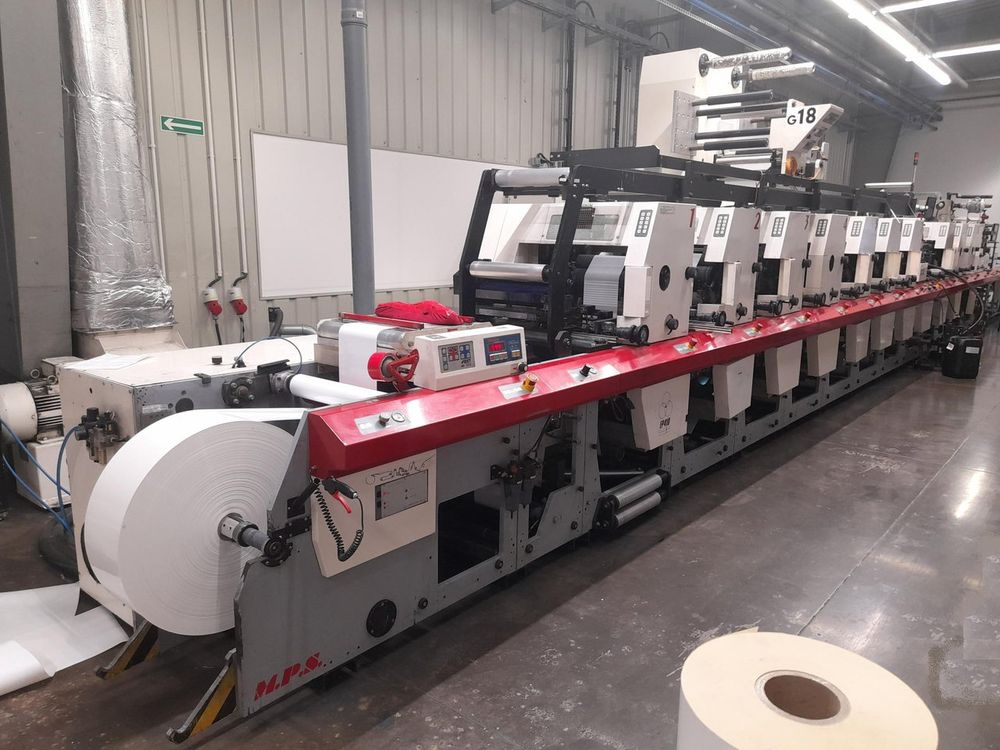

MPS EP 410 10

Type 10-color flexographic printing press with UV curing and multiple converting units
Web Width 410 mm
10 × Flexo printing units Each equipped with GEW UV lamps
Screen printing Possible on printing sections 1–7
Unwinder Installed
2 × Die-cutting units
Operate as Gap Master
Hot foil unit Gilding unit
Cold foil unit Installed
Laminating unit Installed
Delam / Relam unit Enables printing on adhesive side
Web guiding system Installed
Rewinder Installed
Corona treatment Installed
CE Marking Machine CE-certified

Included Accessories Set of magnetic, printing and screen cylinders + anilox rolls
Anilox Rolls :
The machine comes with the following anilox rolls, in usable condition:• 500 L/cm – 2.8 cm³/m²• 400 L/cm – 4.5 cm³/m²• 305 L/cm – 4.1 cm³/m²
• 320 L/cm – 6.2 cm³/m²• 180 L/cm – 7.0 cm³/m²• 260 L/cm – 5.7 cm³/m²• 145 L/cm – 8.0 cm³/m²• 300 L/cm – 7.5 cm³/m²• 305 L/cm – 4.1 cm³/m²

Printing and Magnetic Cylinders : The MPS EP410 is supplied with a complete set of PC (Printing Cylinders) and MC (Magnetic Cylinders) in various sizes.
Quantities and diameters as per current owner’s list:T 96 – 1 MC / 10 PCT 98 – 0 MC / 7 PCT 100 – 1 MC / 10 PCT 104 – 1 MC / 10 PCT 108 – 1 MC /
0 PCT 112 – 1 MC / 10 PCT 116 – 1 MC / 10 PCT 120 – 1 MC / 10 PCT 124 – 1 MC / 10 PCT 128 – 0 MC / 10 PCT 135 – 1 MC / 10 PCT 136 –
1 MC / 10 PCT 141 – 1 MC / 2 PCT 148 – 0 MC / 3 PCT 184 – 1 MC / 10 PCT 192 – 0 MC / 2 PC
All cylinders are used but serviceable; exact condition may vary.
General Condition
• Supplied with set of anilox rolls and cylinders.
• Available immediately
