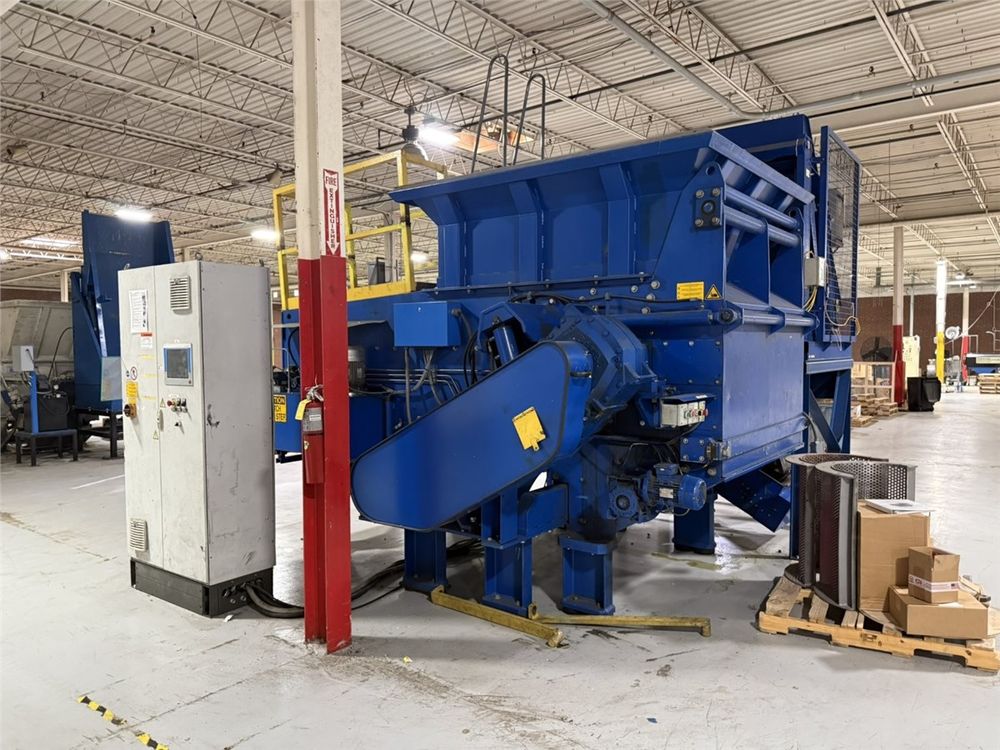

MRC Redoma 90-1600

62” W x 62” Redoma MRC 90-1600, New In 2012
1570 MM(61.81”) Rotor Width
488 MM(19.21”) Diameter Rotor
2230 MM(87.79”) x 1940MM ( 76.38”) Hopper Opening
90 KW(122 HP) Main Motor
112 RPM Rotor Speed
72 Cutters, Hard Faced Rotor
Top And Bottom Counter Knives
5.5 KW (7.38 HP)
Unit Includes ½” Screen And 1.0” Screen
480/3/60, 200 Amps
108” In-Feed Height
Hydraulic Screen Cradle
Touch Screen HMI
Approximate Footprint Of System As Currently Installed: 15’ x 12’
Approximate Shredder Dimensions: 4080 MM(160”) L x 3445 MM (135”) W x 2820MM (111”) H
Approximate Weight: 21,000 LBS

System Includes The Following Pieces:
52” Box Dumper, 62” Load Height,
Discharge Auger Driven By 2.2KW(3 HP) Motor – Feeds Onto
Conveyor
160” L x 20” W Discharge Conveyor With Magnetic Puller. Model
BCM 500X4028, S/N 12/176 – 84” Discharge Height
42” L x 12” Wide Cross Belt Magnet Drive By .25KW(.33HP)
Lenze Motor Mounted On Discharge Conveyor

The Multi Purpose Rough Choppers of REDOMA are mainly
intended for shredding of cables but can also be used for other materials,
such as wood, plastics, cartons etc.
Cable pieces, coils and bundles can be fed into the rough chopper
Automatic buffer feeding
Rotor knives made of hard metal for extra long life span
Wear-resistant screen made of HARDOX available in different sizes
Hydraulic pusher
Hydraulic shock absorber for gear box
Automatic reversing of rotor when overloaded
Material discharge normally by screw conveyor
Suitable for forklift or crane feeding
PLC-operated with touch screen 10 pre-set programs for different types of cable
Cables are chopped down to typically 10-25 mm
