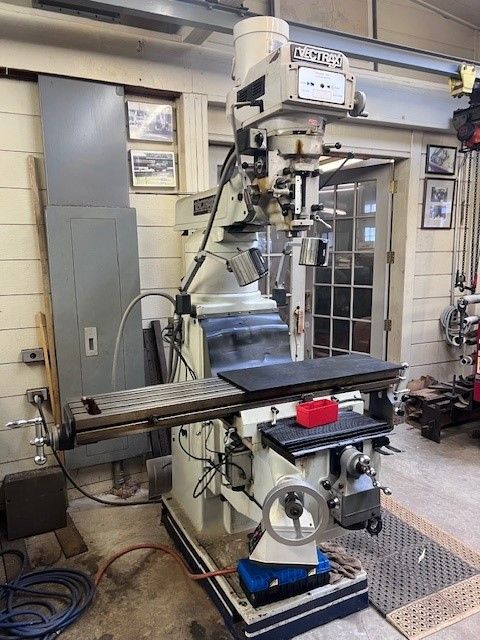

MSC, Vectrax GS-20V Vertical 3600 rpm

Table size: 10" × 54"
Number of T-slots: 3
Longitudinal table travel: 32"
Cross travel: 17.5"
Knee travel: 16"
Ram travel: 18"
Head tilt left/right: 90 degrees
Head tilt front/rear: 15 degrees
Variable spindle speed range: 70 – 3600 rpm
Spindle taper: R8
Maximum collet capacity: 3/4"
Quill travel: 5"
Quill feeds: 0.0015", 0.003", 0.006"
Spindle motor power: 5 HP
Servo power feed longitudinal travel
Servo power feed cross travel
Servo power feed vertical knee travel
Riser block included
One shot lubrication system
Approximate machine weight: 5000 lbs
