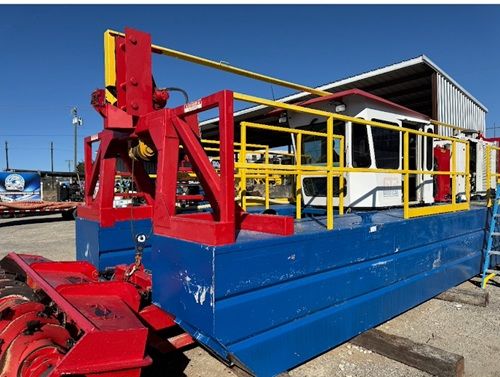

Mudcat MC275D Max dredging depth 25 ft (7.6 m)

One-truck transportable dredging system
Cable drive system
Heavy-duty dual marine prop drive system for self-propelled dredging
Nominal capacity 3,000 GPM (681 m³/hr)
Length overall 12.5 m (41-ft 2-in)
Width 3.3 m (10-ft 8-in)
Height 3.0 m (10-ft)
Draft 1.74 m (29-in)
Fuel capacity 950 liters (250 gals)
Dry weight 15,400 kg (34,000 lbs)
Hydraulically adjustable Mud Shield
Two low-speed, high-torque motors
Auger diameter without cutter knives 400 mm (15.75-in)
Auger diameter with cutter knives 562 mm (22.125-in)
Auger speed 0-60 rpm
Auger torque 2,969 N-m (23,885 in-lbs)
Engine John Deer Diesel
Engine power 224 kW (300 hp)
Hydraulic driven submersible slurry pump, hard iron 500 HBN min
Pump impeller diameter 607 mm (24-in)
Pump suction diameter 254 mm (10-in)
Pump discharge diameter 205 mm (8-in)
Pump performance 3,000 GPM (681 m³/hr) @ 140 ft (42.7 m) TDH @ 852 rpm
Dual prop drive propulsion system with 1,000 lbs thrust total
1,000 ft cable with 4-point shore anchoring package
Ergonomic adjustable chair
Jump seat for deck hand
A/C and heat
Electric outlet
Joystick controls
Digital depth gauge
CAN bus system
Port and starboard bi-folding doors
Back up camera
Sound system
Dredge Operations and Maintenance Manual
Engine Operations Manual
