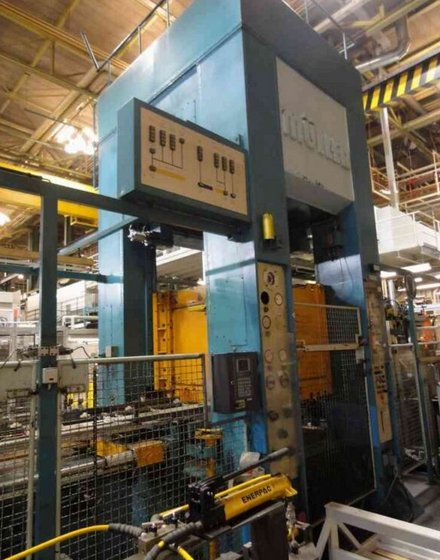

Mueller-Weingarten ZE 500-12/12.2.1 (UVV) 500 t

Press force 500 t
Distance between columns 1220 mm
Max ram stroke 600 mm
Distance table/ram (max stroke up, adjustment up) 1000 mm

Table surface 1600 x 1200 mm
Ram surface 1600 x 1200 mm

Die cushion pressure inside table 320 t
Die cushion stroke inside table 150 mm
Die cushion surface inside table 750 x 812 mm

Die cushion pressure in pusher 180 t
Die cushion stroke in pusher 100 mm
Die cushion surface in pusher 750 x 625 mm

Table height above floor 800 mm

Feed down 665 mm/sec
Feed up 530 mm/sec
Working feed 34–100 mm/sec

Oil capacity 2000 l
Power capacity 180 kW

Machine weight 40 t
Machine dimensions approx. 3.2 x 2.4 x 7.5 m
